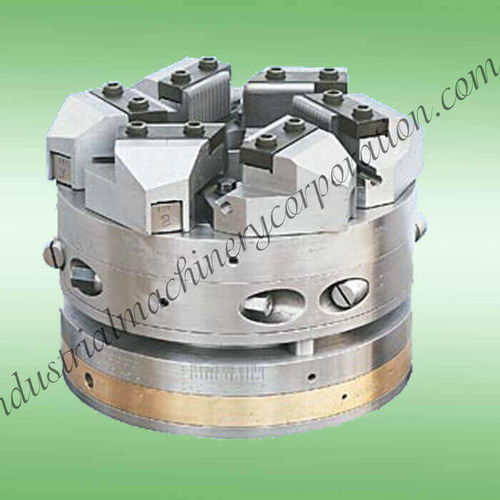

Large capacity die head

threading

Product overview
A Lanco type threading die head by Industrial Machinery Corporation (IMC) is a revolving die head designed for efficient external threading on pipes, bars, bolts and rods in hand-operated, semi-automatic and automatic threading machines. Heat-treated alloy steel construction ensures consistent cutting performance across production runs.

Product details
The IMC heat-treated die head is a revolving design suitable for hand-operated, semi-automatic and automatic threading equipment. Constructed from specially selected alloy steel and heat treated for durability, the die head supports threading up to class 3 tolerances and is capable of cutting coarse-pitch threads in a single pass. The design permits a wide convergence range and rapid setup to reduce machine downtime.

Available options

• Thread type: METRIC, UNC, BSW, BSP, BSPT, NPT, ACME, Others
• Diameter ranges (examples): 6 mm to 25 mm; 10 mm to 40 mm; 10 mm to 50 mm; 12 mm to 65 mm; 25 mm to 100 mm; 65 mm to 150 mm; 100 mm to 200 mm; 200 mm to 250 mm
• Purchase timeframe, quantity and expected price: selectable on product page

Product types / use-cases

• Lanco type pipe threading die head
• Lanco type bar threading die head
• Lanco type bolt threading die head
• Lanco type rebar threading die head
• Lanco type rod threading die head
• Lanco type PVC pipe threading die head

Specifications

• 1/4" to 1" Capacity Die Head — 6 mm to 25 mm — Chaser: 3" x 1.3/64 (Set of 4 pcs)
• 3/8" to 1.1/2" Capacity Die Head — 10 mm to 40 mm — Chaser: 4" x 1.3/64 (Set of 4 pcs)
• 1/2" to 2.1/2" Capacity Die Head — 12 mm to 65 mm — Chaser: 4" x 1.1/4" (Set of 4 pcs)
• 1" to 4" Capacity Die Head — 25 mm to 100 mm — Chaser: 4" x 1.1/4" (Set of 4 pcs) / 5" x 2.1/4" (Set of 4 pcs)
• 2.1/2" to 6" Capacity Die Head — 65 mm to 150 mm — Chaser: 5" x 2.1/4" (Set of 6 pcs)
• 4" to 8" Capacity Die Head — 100 mm to 200 mm — Chaser: 5" x 2.1/4" (Set of 6 pcs)

Notes

• Die heads are heat treated and manufactured from specially selected alloy steel.
• Suitable for hand-operated, semi-automatic and automatic threading machines.
• Recommended for threading up to class 3 tolerances; capable of cutting coarse-pitch threads in a single pass.

Technical specifications

• Product family: Lanco Type Threading Die Head
• Manufacturer / Brand: Industrial Machinery Corporation (IMC)
• Construction: Specially selected alloy steel, heat treated
• Type: Revolving die head for hand-operated, semi-automatic and automatic machines
• Threading tolerance: Up to class 3 tolerances
• Capability: Cuts coarse pitch threads in a single pass; wide range convergence and rapid setup
• Available capacities (examples): 6 mm–25 mm; 10 mm–40 mm; 12 mm–65 mm; 25 mm–100 mm; 65 mm–150 mm; 100 mm–200 mm
• Chaser sections / sets: Supplied in holder sets (examples given in Specifications)
• Typical applications: pipe threading, bolt threading, bar threading, rebar threading, rod threading, PVC pipe threading
• Origin: India (manufacturer listed on page)
