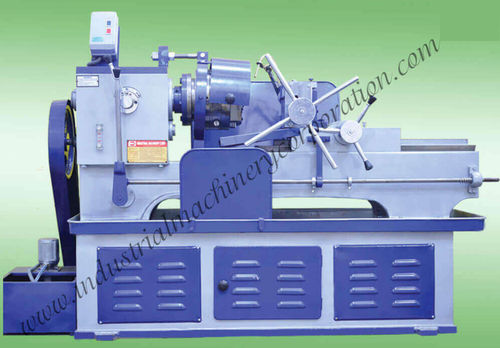

Bolt threading machine

Product overview
Bolt Threading Machine for cutting external threads on stationary jobs using tangential HSS chasers. The die‑head rotates while the workpiece remains fixed, enabling accurate production of BSW, UNF, METRIC, UNC, ACME, BSP, BSPT, NPT and other thread forms suitable for industrial applications.

Components

• Base
• Head stock
• Saddle
• Bed or pillar type clamping vice
• Die‑head

Head stock
Rigidly constructed from forged alloy steel for long‑term alignment with carriage ways; shafts are heat‑treated alloy steel for increased durability.

Saddle
Precision fitted on two pillars to ensure smooth, accurate travel aligned with the head stock center for consistent thread engagement.

Apron
Transfers motion to the saddle using a steel rack and robust gearing. Gears are manufactured from high‑grade steel to ensure reliable power transmission.

Vice jaws
Heavy‑duty box‑type vice with hardened alloy steel jaws, heat treated and screw‑driven for controlled clamping movement aligned to the head stock center.

Range of IMC Thread Cutting Machine Die Heads
Diameter 1/4" to 1" (6 mm to 25 mm)
Diameter 3/8" to 1.1/2" (10 mm to 40 mm)
Diameter 1/2" to 2.1/2" (12 mm to 65 mm)
Diameter 1" to 4" (25 mm to 100 mm)

Specifications (by model)

• Model A — Capacity 1/4"–1" (6–25 mm, bed type): Saddle movement 10"; Spindle speed 75–140 rpm; 2 spindle speeds; Production 60–80 pieces/hour; Motor 3 H.P.; Lead screw optional; Weight ≈ 500 kg.
• Model B — Capacity 3/8"–1.1/2" (10–40 mm, bed type): Saddle movement 13"; Spindle speed 75–140 rpm; 2 spindle speeds; Production 60–80 pieces/hour; Motor 3 H.P.; Lead screw optional; Weight ≈ 550 kg.
• Model C — Capacity 1/2"–2.1/2" (12–65 mm, bed type): Saddle movement 22"; Spindle speed 45–90 rpm; 2 spindle speeds; Production 70–90 pieces/hour; Motor 7.5 H.P.; Lead screw optional; Weight ≈ 990 kg.
• Model D — Capacity 1"–4" (25–100 mm, pillar type): Saddle movement 10"–12"; Spindle speeds 40 / 75 / 115 rpm; 3 spindle speeds; Production 35–40 pieces/hour; Motor 12.5 H.P.; Lead screw provided; Weight ≈ 1600 kg.

Available options

• Thread type: METRIC, ACME, BSW, UNC, UNF, BSP, BSPT, NPT, others on request
• Thread length required: up to 4" (100 mm), up to 12" (300 mm), up to 24" (600 mm), custom
• Diameter of the job: select ranges from 6 mm to 100 mm or provide custom diameter
• Purchase timeline: immediate, within one week, within 15 days, within one month, other

Notes
The machine uses HSS tangential chasers as cutters. The stationary workpiece combined with rotating die‑head produces fine, repeatable external threads. Thread forms available depend on the set of chasers supplied.

Technical specifications

• Product: Bolt Threading Machine
• Cutting method: Tangential chasers (HSS)
• Thread types supported: BSP, MATRIX, BSPT, NPT, UNF, UNC, BSW, ACME, METRIC
• Die‑head diameter ranges: 1/4"–1"; 3/8"–1.1/2"; 1/2"–2.1/2"; 1"–4"
• Saddle movement options: 10", 13", 22", 10"–12"
• Spindle speed ranges: 75–140; 45–90; 40–75–115 rpm
• Number of spindle speeds: 2 or 3 (model dependent)
• Production rate: 35–90 pieces/hour depending on model
• Motor power: from 3 H.P. up to 12.5 H.P. depending on model
• Lead screw: Optional / Provided (model dependent)
• Approx. weight: 500–1600 kg depending on model
