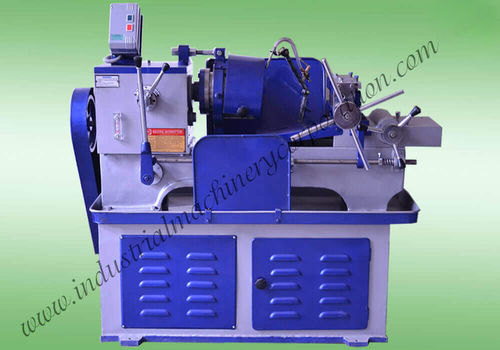

Bar threading machine

Product overview
The semi-automatic TMT Chaser rebar threading machine performs outside threading on forged TMT bars (EN8-D standard). Designed for high-production site use, the machine is available in three column models (A, B, C) covering 6 mm to 65 mm diameters. Constructed with high-density alloys and industrial components, it is intended to reduce operator time and maintenance needs during long operating periods.

Thread types that can be cut

• Metric
• BSP
• BSPT
• NPT
• UNF
• UNC
• BSW
• Acme Threads
• B.S.F.

Key features

• Semi-automatic high-speed operation suitable for continuous production
• Components made from high-density alloys for consistent performance
• Robust construction for workshop and site environments
• Low maintenance design for extended run times
• Optional lead screw for specific threading requirements

Operating / market information

• Intended for outside threading on TMT bars after forging
• Suitable for high-production facilities and construction yards
• Installed and operational in multiple international markets including Abu Dhabi, Algeria, Australia, Bangladesh, Bhutan, Canada, Central America, Colombia, Germany, Ghana, Jordan, Kuwait, Lebanon, Malaysia, Maldives, Mexico, Myanmar, Nepal, Peru, Philippines, Qatar, Saudi Arabia, South Australia, Sri Lanka, Thailand, Tunisia, Turkey, U.A.E., USA, Vietnam

Specifications table
Model: Column A — 1/4" to 1" (6 mm to 25 mm) (Bed Type); Column B — 3/8" to 1 1/2" (10 mm to 40 mm) (Bed Type); Column C — 1/2" to 2 1/2" (12 mm to 65 mm) (Bed Type)
Saddle Movement: Column A — 10"; Column B — 10" - 12"; Column C — 22"
Spindle Speed Range: Column A — 75–140 rpm; Column B — 75–140 rpm; Column C — 45–90 rpm
Number of Spindle Speeds: Column A — 2; Column B — 2; Column C — 3
Threading Capacity: Column A — 1/4" to 1"; Column B — 3/8" to 1 1/2"; Column C — 1/2" to 2 1/2"
Production per Hour: Column A — 60–80; Column B — 60–80; Column C — 70–90
Power Required: Column A — 3 H.P.; Column B — 3 H.P.; Column C — 7.5 H.P.
Lead Screw: Optional (all columns)
Approx. Weight (kg): Column A — 500; Column B — 550; Column C — 990

Technical specifications

• Model variants: Column A (6–25 mm), Column B (10–40 mm), Column C (12–65 mm)
• Saddle movement: 10" / 10"–12" / 22" (by model)
• Spindle speed ranges: 75–140 rpm (A & B), 45–90 rpm (C)
• Spindle speed settings: 2 (A & B), 3 (C)
• Threading capacity: up to 1/4"–2 1/2" depending on model
• Production rate: 60–90 threads/hour depending on model
• Power: 3 H.P. (A & B), 7.5 H.P. (C)
• Lead screw: optional
• Approx. weight: 500 / 550 / 990 kg (by model)
