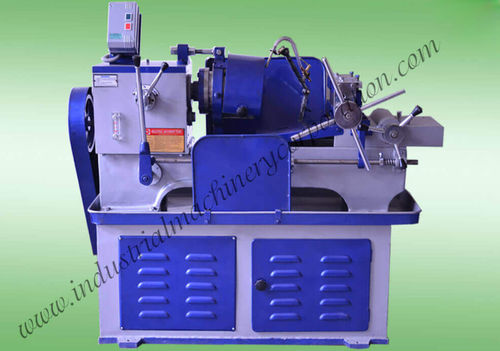

Mechanical threading machine

high-speedfor rebar

Product Overview
A Rebar Threading Machine is used to cut external threads and remove ribs from TMT rebars for mechanical splicing and connections. IMC supplies thread cutting chasers and complete machines engineered for TMT bar sizes and industrial production environments. The equipment is intended for workshop use where repeatable, dimensional threads are required.

Materials and Tooling
IMC TMT bar tangential chasers are manufactured from imported high-speed steel meeting strict metallurgical specifications. Controlled heat treatment and inspection on imported equipment ensure tool life and consistent thread form within specified tolerances.

Range of IMC Thread Cutting Die Heads

• 1/4 in to 1 in (6MM to 25MM)
• 3/8 in to 1 1/2 in (10MM to 40MM)
• 1/2 in to 2 1/2 in (12MM to 65MM)

Available Options

• Thread type: METRIC; BSW; Others; Don't know exactly
• Thread length required: Up to 4 in (100MM); Up to 12 in (300MM); Up to 24 in (600MM); Others; Don't know exactly
• Diameter range of job: 1/4 in to 1 in (6MM to 25MM); 3/8 in to 1 1/2 in (10MM to 40MM); 3/8 in to 2 in (10MM to 50MM); 1/2 in to 2 1/2 in (12MM to 65MM); Others; Don't know exactly
• Purchase timeframe: Immediately; Within a week; Within 15 days; Within a month; Others; Don't know exactly
• Expected price: customer input field

Specifications Table
MODEL: 1/4 in TO 1 in (6MM to 25MM) (BED TYPE) / 3/8 in TO 1 1/2 in (10MM to 40MM) (BED TYPE) / 1/2 in TO 2 1/2 in (12MM to 65MM) (BED TYPE)
Saddle Movement: 10 in / 13 in / 22 in
Spindle Speed Range: 75-140 / 75-140 / 45-90
Number of Spindle Speeds: 2 / 2 / 2
Threading Capacity: 1/4 in to 1 in / 3/8 in to 1 1/2 in / 1/2 in to 2 1/2 in
Production per Hour: 60-80 / 60-80 / 70-90
H.P. Required: 3 H.P. / 3 H.P. / 7.5 H.P.
Lead Screw: Optional / Optional / Optional
Weight (KG) Approx.: 500 / 550 / 990

Technical specifications

• Model variants: 1/4 in TO 1 in (6MM-25MM), 3/8 in TO 1 1/2 in (10MM-40MM), 1/2 in TO 2 1/2 in (12MM-65MM)
• Saddle movement: 10 in (model 1), 13 in (model 2), 22 in (model 3)
• Spindle speed range: 75-140 rpm (models 1 & 2), 45-90 rpm (model 3)
• Number of spindle speeds: 2 (all models)
• Threading capacity: model 1: 1/4 in to 1 in; model 2: 3/8 in to 1 1/2 in; model 3: 1/2 in to 2 1/2 in
• Production per hour: model 1: 60-80; model 2: 60-80; model 3: 70-90
• Power required: model 1: 3 H.P.; model 2: 3 H.P.; model 3: 7.5 H.P.
• Lead screw: Optional (all models)
• Approx. weight (kg): model 1: 500; model 2: 550; model 3: 990
