Multi-channel manifold MSM

aluminiumfor hydraulic applicationsplate

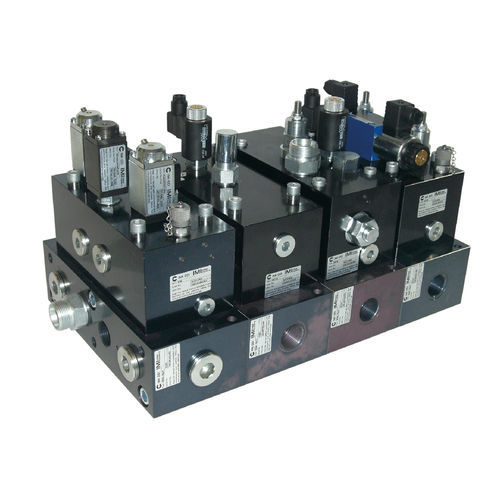

Compact manifold system supplying hydraulic fluid to multiple actuators with minimal external tubing. Reduces system complexity with a compact design that integrates multiple valve control functions on a single rack. Minimises external tubing by internally routing hydraulic fluid through P and T channels for multiple actuators. Supports demanding applications with robust construction and compatibility with fire-resistant hydraulic fluids. The Multi-Station Manifold (MSM) is a hydraulic distribution system that simplifies valve actuation by combining multiple control functions in a single compact unit. It supplies hydraulic fluid to multiple actuators with minimal external tubing, reducing system complexity. The MSM can accommodate up to eight functional elements, including proportional valves and trip mode devices, all fed through internal P and T channels. Designed for rugged industrial environments, it supports mineral oil and fire-resistant hydraulic fluids. The MSM is available in small and large sizes, ensuring compatibility with a range of actuators in power generation, refining, and industrial automation applications. Key features Controls multiple actuators from one unit Up to eight integrated functional elements Internal P and T channel routing Small (100 l/min) and large (200 l/min) sizes supports mineral oil and fire-resistant fluids Isolation available for each channel Customisable manifold configurations Aluminium anodised construction IP-rated for industrial use
