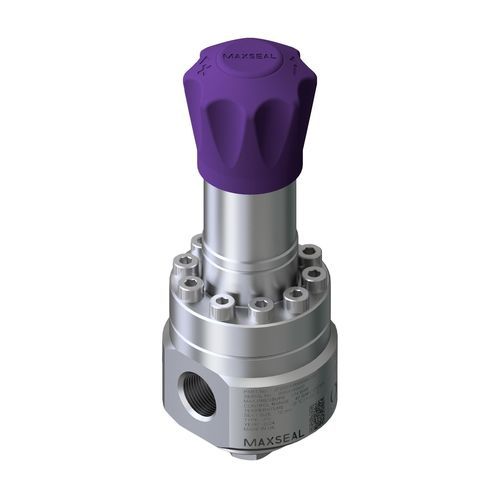

Water pressure regulator J72

for gasdiaphragmspring

Overview The J72 Series 3/4 inch spring loaded regulator provides accurate, stable pressure control for demanding high- and low-pressure gas and liquid applications. It regulates inlet pressures up to 414 bar with selectable outlet control ranges to meet process requirements. A 10 mm valve seat and sensitive piston or diaphragm sensing ensure stable delivery as inlet pressure varies. 316L stainless steel construction, ANSI FCI 70-3 Class VI and API 598 tight shutoff, and temperature capability down to -50 °C with appropriate elastomers support severe-service operation. Standard connections include 3/4" NPT or BSPP ports, 1/4" gauge ports and a 1/8" ported vent. Certifications include ATEX, PED and EN 12266-1. Options: tamper-proof cap, panel mounting, NACE compliance, ASTM G93 Level C cleanliness.

Key features

• Up to 414 bar pressure capability
• ANSI FCI 70-3 Class VI tight shutoff
• Compatible with gas and liquid media
• 316L stainless steel construction
• ATEX and PED compliant
• NACE option available
• Tamper-proof cap option
• Panel mounting option
• Integral gauge ports
• Low-temperature option to -50 °C

Additional product details

• Loading: Spring-loaded regulator design
• Sensing: Sensitive piston or diaphragm sensing
• Valve seat: 10 mm valve seat for stable flow control
• Shutoff: ANSI FCI 70-3 Class VI and API 598 tight shutoff
• Media: Suitable for both gas and liquid applications
• Standard ports: 3/4" NPT or BSPP inlet/outlet; 1/4" gauge ports; 1/8" ported vent
• Temperature range: Capability down to -50 °C with suitable elastomers; typical ambient range -50 to 100 °C
• Construction: Heavy-duty 316L stainless steel body
• Typical applications: High- and low-pressure process control duties requiring severe-service performance

Technical specifications

• Loading: Spring loaded
• Fluid types: Gas; Liquid
• Port size (in): 0.75 to 0.75 (3/4")
• Maximum working pressure (barg): 414
• Maximum set pressure (barg): 414
• Ambient temperature (°C): -50 to 100
• Body material: Stainless Steel 316L
• Seal material: NBR; FKM; EPDM; Low temperature NBR
• Valve seat: 10 mm
• Gauge ports: 1/4"
• Ported vent: 1/8"
• Shutoff standard: ANSI FCI 70-3 Class VI and API 598
• Certifications: PED; ATEX; EN 12266-1; NACE (option)
• Options: Tamper-proof cap; Panel mounting; NACE compliance; ASTM G93 Level C cleanliness
