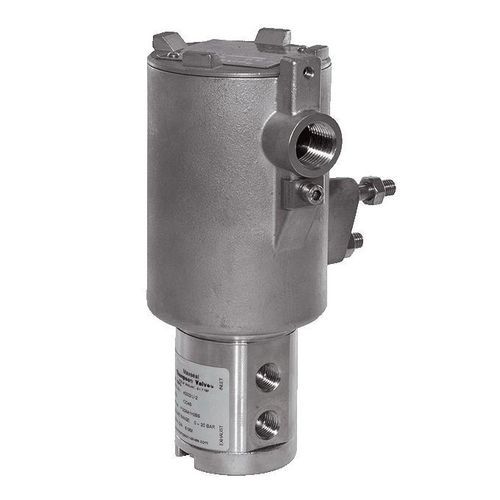

Direct-acting solenoid valve ICO4S

3/2-wayNONC

Overview
The ICO4S is an explosion-proof solenoid poppet valve designed for high-pressure hydraulic and pneumatic applications. Suited for air, neutral gases and low-pressure hydraulic media, it provides high flow, low leakage and multiple port/configuration options.

Details
The ICO4S (and ICO4S-HYD for hydraulic variants) are direct-acting solenoid poppet valves built for harsh environments and safety-critical systems. Available in pneumatic and hydraulic versions, they offer SIL 3 capability, zero-leakage sealing and broad environmental protection. Constructed in 316L stainless steel, the series withstands hydraulic service up to 414 bar and pneumatic service up to 20 bar. Certifications include ATEX, IECEx, FM and CSA, making the valves suitable for offshore, oil & gas, power generation and heavy industrial installations.

Key features

• SIL 3 capable for high-integrity safety applications
• Zero-leakage sealing for reliable isolation
• Hydraulic (high-pressure) and pneumatic versions
• Hydraulic service up to 414 bar; pneumatic up to 20 bar
• 316L stainless steel body for corrosion resistance
• Explosion-proof design with ATEX, IECEx, FM and CSA certifications
• IP66/IP67 (NEMA 4X) rated
• Flexible port options (ISO G, NPT, NAMUR, manifold)
• Multiple configurations: 3/2, 2/2 (energise to open/close), 5/2
• Wide voltage and low power consumption options

Specifications
Ambient Temperature (°C): -55 to 90
Seal Material: NBR; FKM
Body Material: Stainless Steel 316L
Port Size ("): 0.25 to 0.5
Port Options: ISO G; NPT; NAMUR; Manifold
Operating Pressure (bar): 0 to 414
Ex Protection Concept: Ex d
Supply Medium: Pneumatic; Low-Pressure Hydraulic; Process Media
Configuration: 3/2 Universal; 2/2 Energise to Open; 2/2 Energise to Close; 5/2 Fixed
Power Consumption (W): 4.5 to 18.0
Voltage: multiple DC/AC options including 24V DC, 48V, 125V DC, 220/240V AC, etc.
Certification: ATEX; IECEx; FM; CSA; CRN; IN-METRO; NEPSI; CCOE; KOSHA; Japan (ISHL); SIL2; SIL3; NEMA 4X; IP66/X8

Technical specifications

• Ambient Temperature: -55 to 90 °C
• Seal Materials: NBR, FKM
• Body Material: Stainless Steel 316L
• Port Sizes: 0.25" to 0.5"
• Operating Pressure: 0 to 414 bar (hydraulic), up to 20 bar (pneumatic)
• Ex Protection: Ex d
• Configurations: 3/2, 2/2 (energise to open/close), 5/2
• Power Consumption: 4.5–18.0 W
• Voltage Options: multiple DC/AC ranges
• Certifications: ATEX, IECEx, FM, CSA, SIL2/3, NEMA 4X, IP66/IP67
