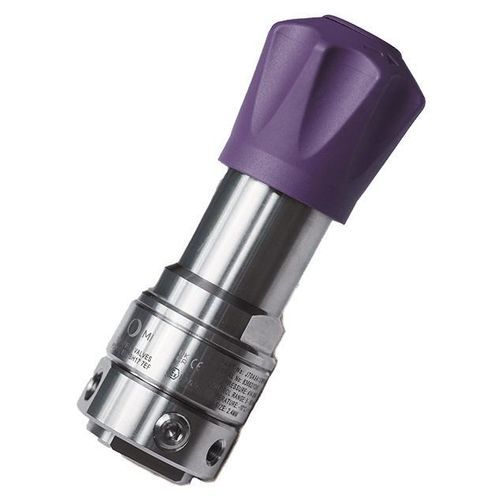

Water pressure regulator J70

for gasspringEPDM

Overview
The IMI Maxseal J70 is a spring-loaded pressure regulator engineered for high-pressure gas and liquid control in industrial and hazardous environments. Built with a stainless steel 316L body, the J70 provides stable regulation across a wide control range while minimising pressure droop. It offers multiple porting and mounting configurations and an adjustable spring system for precise setpoint control. ATEX compliance and robust high-pressure capability make it suitable for demanding oil & gas, power and automation installations.

Key features

• Control range: 2 to 700 bar
• High-pressure capability up to 700 bar
• Minimal pressure droop for stable output
• Stainless steel 316L body for corrosion resistance
• Compatible with gas and liquid media
• ATEX-compliant for hazardous areas
• Inline and panel mounting options
• Spring-loaded design with adjustable spring
• Multiple porting options

Applications
Designed for oil & gas, power generation, process industries and industrial automation where precise, reliable pressure control is required under high-pressure or hazardous conditions.

Technical specifications

• Fluid types: Gas; Liquid
• Control / pressure range: 2 to 700 bar
• Ambient temperature: -50 to 100 °C
• Seal materials: NBR; FKM; EPDM; Low temperature NBR
• Body material: Stainless steel 316L
• Port size (inches): 0.25
• Maximum working pressure (barg): 700
• Maximum set pressure (barg): 700
• Loading: Spring-loaded
• Type: Pressure regulator
• Certifications: PED; ATEX; NACE
• Filter element (µm): 25
