Poppet hydraulic directional control valve PV

electrically-operatedelectro-hydraulic3/2-way

Product overview

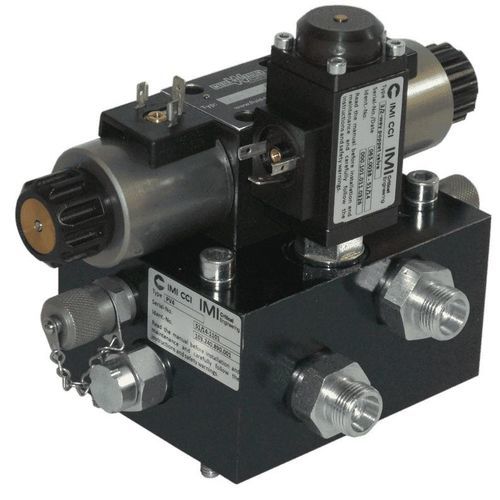

The PV modulating control device provides precise positioning of hydraulic actuators in control valve systems. Designed to be used with the Proportional Valve Controller (PVR / SmarTrak), it converts electrical control signals into controlled hydraulic flow. The unit integrates a proportional valve for actuator movement and a 3/2 blocking valve with two releasable check valves to secure actuator position in case of power loss. Two Minimess ports allow pressure measurement and safe pressure release. The PV can be mounted directly on an actuator or as a sandwich/direct-mounted module on a Multi-Station Manifold (MSM). Available in four sizes, it supports mineral oil and fire-resistant hydraulic fluids for reliable operation in demanding industrial environments.

Key features

• Proportional valve for accurate actuator control
• 3/2 blocking valve with two releasable check valves to maintain position on power loss
• Two Minimess connections for pressure checks and safe pressure release
• Direct or sandwich mounting on Multi-Station Manifolds (MSM) or mounting on individual actuators
• Four sizes: PV4, PV6, PV8, PV10
• Flow range: 8–120 l/min (size dependent)
• System pressure range: 50–160 bar
• Compatible with mineral oil and fire-resistant hydraulic fluids
• Anodised aluminium housing, IP65
• Operating temperature: -10°C to 80°C

Applications
Modulating control for fast and precise positioning of hydraulic actuators on control valves. Suitable for high-pressure industrial systems, including feedwater recirculation and installations with high differential pressure across the valve.

Technical specifications

• Sizes: PV4, PV6, PV8, PV10
• Max flow: 8–120 l/min (dependent on size)
• System pressure: 50–160 bar
• Supply medium: Hydraulic
• Fluid compatibility: Mineral oil and fire-resistant hydraulic fluids
• Housing material: Anodised aluminium
• IP rating: IP65
• Ambient / operating temperature: -10°C to 80°C
• Mounting: Direct or sandwich mounting on MSM or actuator mounting
• Controls: Works with Proportional Valve Controller (PVR / SmarTrak) to convert electrical signals into hydraulic flow
• Safety/stability: Integrated blocking valve and releasable check valves to prevent unintended movement during power failure
• Service connections: Two Minimess ports for pressure checking and safe pressure release
