Furniture design bumper AKCAQ

plasticpolypropylene

Product description

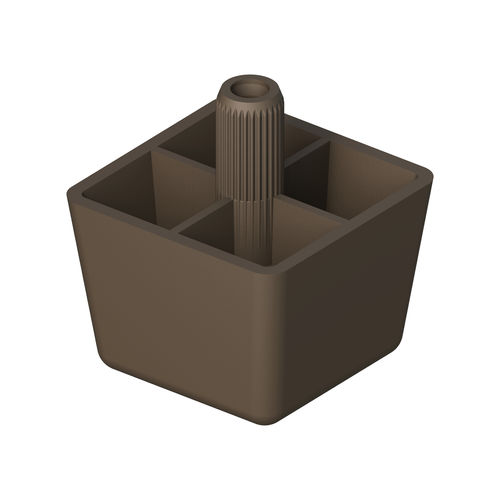

Square screw-on bumpers for tables, sofas and other wooden furniture. Manufactured in polypropylene (PP); standard colour: brown. Other RAL colours available on request. Incorporating reference 02500200098 (AKCAI) at the base reduces wear caused by friction with the floor.

Standards and compliance

• UL94: not applicable / not rated
• IP: not applicable / not rated
• RoHS: compliant

Measurements
Measures expressed in: Millimeters

Multimedia

• Product video available
• 2D drawing (PDF) available for download

Related families

• AKCAI (round top, reference 02500200098)
• AKCAK (screwed wood stops)

Technical specifications

• Model / series: AKCAQ
• Material: Polypropylene (PP)
• Standard colour: Brown (other RAL colours available on request)
• Compatible base reference: 02500200098 (AKCAI) can be integrated to reduce wear from friction
• Unit of measure: millimeters
• References and dimensions (mm):
  02500200160 | h: 39.30 | D: 54.25 | C: 14.00 | H: 61.00 | E: 21.80 | C1: 5.80
  02500200161 | h: 59.00 | D: 54.25 | C: 14.00 | H: 80.30 | E: 21.80 | C1: 5.80
