Press-fit end cap EasyGlide™

roundcarbonHDPE

Product overview

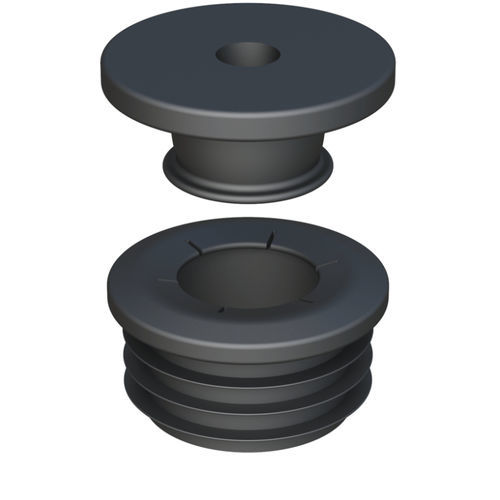

ISC presents EasyGlide™: a two-part end cap for chairs with interchangeable bases, designed for manual, tool-free installation and fast base replacement. The permanent body stays in the tube while the replaceable base is changed when worn, protecting chair and table legs from damage caused by degraded inserts.

Key features

• Manual, tool-free installation and replacement
• Two-part design: permanent body + replaceable base
• Tilting design adapts to leg and/or floor inclination
• Multiple base materials available to suit different floor types and uses
• Reduces waste and carbon footprint by replacing only the worn base

Materials
The replaceable base is available in: HDPE, POM, PA6, TPE-E and FELT.

Certifications & conformity
RoHS: compliant.
UL94: not specified.
IP rating: not specified.

Environmental / BIO line
Some references are available with a biodegradable additive (BIO Line) used during production that does not affect in-service performance.

Awards & customization
EasyGlide™ was a finalist in the iF DESIGN AWARD. RAL colours are available on request.

Files & media (available on the product page)
Technical drawings and PDFs, plus a demonstration video, are provided on the product page.

References table
Reference | For Tube (D) | Tube Thickness | Body | Base | More Info
999MAICO020 | 16 | - | no | yes |
999MAICO010 | 16 | 1.50 to 2.00 | yes | no |
999MAICO021 | 18 | - | no | yes |
999MAICO011 | 18 | 1.50 to 2.00 | yes | no |
999MAICO022 | 20 | - | no | yes |
999MAICO012 | 20 | 1.50 to 2.00 | yes | no |
999MAICO023 | 22 | - | no | yes |
999MAICO013 | 22 | 1.50 to 2.00 | yes | no |
999MAICO024 | 25 | - | no | yes |
999MAICO014 | 25 | 1.50 to 2.00 | yes | no |

Technical specifications

• Brand: ISC Plastic Parts
• Commercial name / model: EasyGlide™
• Design: two-part (body + interchangeable base)
• Installation: manual, tool-free
• Tilting: adapts to leg/ground inclination
• Base materials: HDPE, POM, PA6, TPE-E, FELT
• Compliance: RoHS (declared); UL94 and IP not specified
• Measurements expressed in millimetres (mm)
• Environmental option: BIO Line with biodegradable additive for selected references
• Awards: iF DESIGN AWARD (finalist)
• Available references: for tube diameters 16, 18, 20, 22, 25 mm (see references table)
