Furniture thread insert VOR

Product description

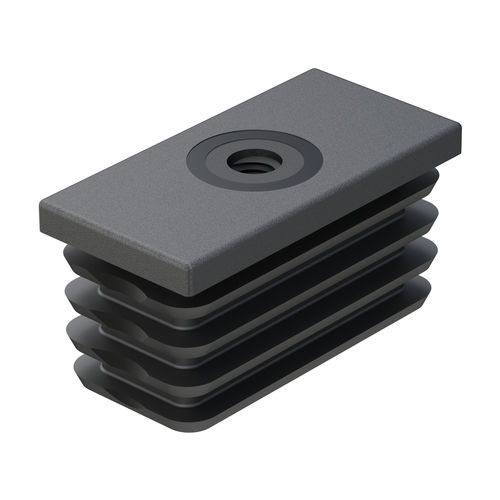

VOR threaded inserts for rectangular tubes provide a molded metric thread produced during the injection process, enabling the subsequent fitting of components such as leveling feet or wheels. Inserts are manufactured in black PA6 (Polyamide 6) and include retaining wings to improve grip inside the tube. Compatible with rectangular tube sections from 40×20 mm up to 60×40 mm and tube thicknesses typically from 1.00 to 3.00 mm depending on reference.

Versions
Square version is available under family VER.

Compliance and documents
Drawing PDF: available
UL94: not specified
IP: not specified
RoHS: compliant
Measures expressed in: millimeters
Video: available demonstrating installation and use

References table
Reference | For Tube | Tube Thickness | Metric Thread (M) | L1 | L | H | Maximum load (N)
00700800160 | 40 x 20 | 1.50 to 2.00 | M8 | 14.50 | 24.00 | 5.00 | 1962
00700800161 | 40 x 20 | 1.50 to 2.00 | M10 | 14.50 | 24.00 | 5.00 | 1962
00700800162 | 40 x 25 | 1.50 to 2.00 | M8 | 14.50 | 24.00 | 5.00 | 1962
00700800163 | 40 x 25 | 1.50 to 2.00 | M10 | 14.50 | 24.00 | 5.00 | 1962
00700800164 | 40 x 30 | 1.50 to 2.00 | M8 | 14.50 | 24.00 | 5.00 | 1962
00700800165 | 40 x 30 | 1.50 to 2.00 | M10 | 14.50 | 24.00 | 5.00 | 1962
00700800166 | 40 x 30 | 1.50 to 2.00 | M12 | 14.50 | 24.00 | 5.00 | 1962
00700800167 | 50 x 20 | 1.50 to 2.00 | M8 | 14.50 | 24.00 | 5.00 | 1962
00700800168 | 50 x 20 | 1.50 to 2.00 | M10 | 14.50 | 24.00 | 5.00 | 1962
00700800169 | 50 x 25 | 1.50 to 2.00 | M8 | 14.00 | 24.00 | 5.00 | 1962
00700800170 | 50 x 25 | 1.50 to 2.00 | M10 | 14.50 | 24.00 | 5.00 | 1962
00700800171 | 50 x 30 | 1.00 to 1.50 | M8 | 14.50 | 24.00 | 5.00 | 1962
00700800172 | 50 x 30 | 1.50 to 2.00 | M8 | 14.50 | 24.00 | 5.00 | 1962
00700800173 | 50 x 30 | 1.00 to 1.50 | M10 | 14.50 | 24.00 | 5.00 | 1962
00700800174 | 50 x 30 | 1.50 to 2.00 | M10 | 14.50 | 24.00 | 5.00 | 1962
00700800175 | 50 x 30 | 1.50 to 2.00 | M12 | 14.50 | 24.00 | 5.00 | 1962
00700800176 | 50 x 30 | 1.50 to 2.00 | M12 | 14.50 | 24.00 | 5.00 | 1962
00700800177 | 60 x 25 | 1.50 to 2.00 | M8 | 14.50 | 24.00 | 5.00 | 1962
00700800178 | 60 x 25 | 1.50 to 2.00 | M10 | 14.50 | 24.00 | 5.00 | 1962
00700800179 | 60 x 30 | 1.50 to 2.00 | M8 | 14.00 | 24.00 | 5.00 | 1962
00700800180 | 60 x 30 | 1.50 to 2.00 | M10 | 14.50 | 25.00 | 5.00 | 1962
00700800181 | 60 x 30 | 1.50 to 2.00 | M12 | 14.50 | 24.00 | 5.00 | 1962
00700800182 | 60 x 40 | 1.50 to 2.00 | M8 | 14.50 | 24.00 | 5.00 | 1962
00700800183 | 60 x 40 | 1.50 to 2.00 | M10 | 14.50 | 24.00 | 5.00 | 1962
00700800184 | 60 x 40 | 1.50 to 2.00 | M12 | 14.50 | 24.00 | 5.00 | 1962

Characteristics / technical specifications

• Family / model: VOR
• Material: PA6 (Polyamide 6), black
• Applications: inserts for rectangular tubes to mount leveling feet or wheels
• Compatible tube sections: 40×20 mm to 60×40 mm (various references)
• Tube thickness ranges: typically 1.00 to 3.00 mm (reference-dependent)
• Available metric threads: M8, M10, M12
• Typical dimensions: L1 ≈ 14.00–14.50 mm; L ≈ 24.00–25.00 mm; H ≈ 5.00 mm
• Maximum load (listed): 1962 N (per listed reference)
• Standards / compliance: RoHS compliant
• Measures unit: millimeters
