PVC bumper QL

impact-protectionanti-collisionfurniture

Product description

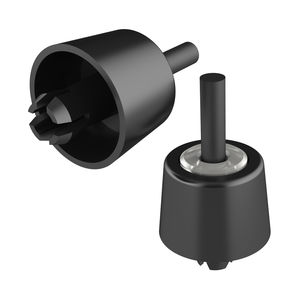

Our QL screw-fixing cylindrical bumper is designed for round tubes and is available in diameters 20 mm, 23 mm and 25 mm. Versatile in use; a common application is as a bumper for stacking chairs (see web animation). It is made of flexible PVC (Polyvinyl Chloride) in black.

Technical information

• Drawing PDF: available
• UL94: not applicable
• IP rating: not applicable
• RoHS: compliant
• Dimensions unit: millimeters
• Video: available

References / Dimensions (table)
Reference | For tube (A) | F | E | H | L
00900600000 | 20 | 5,00 | 9,00 | 14,00 | 9,00
00900600001 | 23 | 5,00 | 10,00 | 18,00 | 11,50
00900600002 | 25 | 6,00 | 15,00 | 28,00 | 20,00

Characteristics / Technical specifications

• Brand: ISC Plastic Parts
• Model: QL
• Product type: screw-fixing bumper / cylindrical buffer with hole
• Material: flexible PVC (Polyvinyl Chloride)
• Color: black
• Available diameters (for tube A): 20 mm, 23 mm, 25 mm
• Unit of measure: millimeters
• Regulatory: RoHS compliant; UL94 not applicable; IP rating not applicable
• Typical application: bumper for stacking chairs and general tube protection
• Drawing PDF and product video: available on the product page
