Round tube foot AKCL

for furniturefor chairplastic

Product description

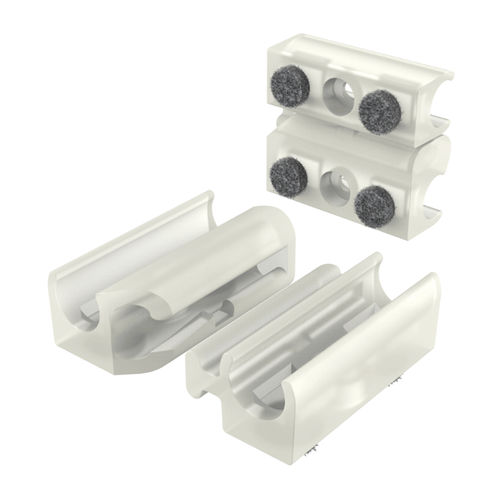

The AKCL saddle foot for round tube includes a joining link to connect chairs in parallel. Designed for use on designer chairs, it fits a range of tube diameters and is offered with assembly options useful to specifiers and manufacturers.

Key features

• Material: PP (Polypropylene).
• Colours: Black and Natural (translucent).
• Options: With felt; Without felt.
• Compatible tube diameters: 10 mm to 17 mm (see references below).
• Application: For mounting on round chair legs and enabling parallel connection of seats via joining link.

Standards & compliance
Complies with EN 14703:2007 (test for joined chairs). RoHS: compliant. UL94: not specified. IP rating: not specified.

Technical drawings & files
Drawing PDF available (download function on site). Product video available.

Table - References and dimensions (millimetres)
Reference | For tube (D) | B | L | E | c | C | H
02500600110 | 10 to 11 | 38,00 | 46,00 | 25,00 | 5,00 | 10,00 | 6,00
02500600111 | 12 to 13 | 42,00 | 46,00 | 26,00 | 5,00 | 10,00 | 6,00
02500600112 | 14 to 15 | 47,00 | 46,00 | 29,00 | 5,00 | 10,00 | 6,00
02500600113 | 16 to 17 | 51,00 | 46,00 | 30,00 | 5,00 | 10,00 | 6,00

Characteristics / technical specifications

• Model: AKCL
• Brand: ISC Plastic Parts
• Material: PP (Polypropylene)
• Available colours: Black; Natural (translucent)
• Options: With felt; Without felt
• Tube compatibility: 10 mm to 17 mm (references cover 10–11, 12–13, 14–15, 16–17)
• Standards: EN 14703:2007 (joined chairs test)
• RoHS: Compliant
• UL94: Not specified
• IP rating: Not specified
• Measurements expressed in: Millimetres
• References available: 02500600110, 02500600111, 02500600112, 02500600113
