Flanged nut QA
T-shapedwoodencomposite

Flanged nut - QA - ISC PLASTIC PARTS - T-shaped / wooden / composite
Flanged nut - QA - ISC PLASTIC PARTS - T-shaped / wooden / composite
Add to favorites
Compare this product

Characteristics

Types
flanged, T-shaped
Material
wooden, composite, particle board
Other characteristics
threaded, toothed, furniture
Nominal diameter

Min.: 5 mm
(0.2 in)

Max.: 10 mm
(0.39 in)

Height

Min.: 8 mm
(0.315 in)

Max.: 11 mm
(0.433 in)

Width

Min.: 6.2 mm
(0.24 in)

Max.: 12 mm
(0.47 in)

Description

Description

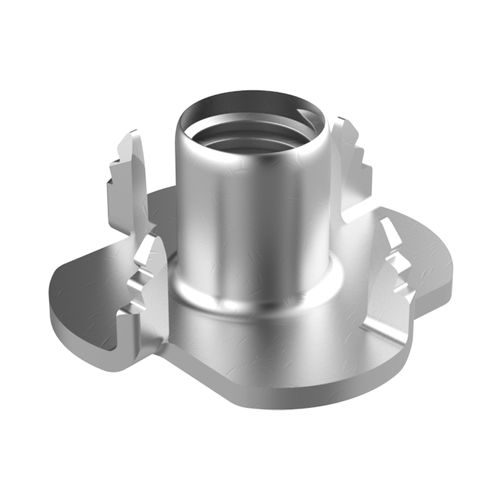

QA T-nut designed for fastening wood, particleboard and composite panels while maintaining a flush surface. It has a long slender body with a flange at one end forming a T-shape in side view. The flange is equipped with spikes/hooks that embed in the workpiece as the bolt is tightened from the opposite side to increase retention.

Technical information
  • Drawing PDF: available (download from product page)
  • UL94: not indicated / not applicable
  • IP: not indicated / not applicable
  • RoHS: compliant
  • Measures expressed in: Millimeters
  • Video: product video available on the product page

Variants / References (table)
Reference | Metric (M) | A | B | C
00900700001 | M5 | 17,00 | 6,20 | 8,00
00900700002 | M6 | 19,00 | 8,00 | 10,00
00900700003 | M8 | 22,00 | 9,50 | 11,00
00900700004 | M10 | 25,00 | 12,00 | 11,00

Characteristics / Technical specifications
  • Product type: QA T-nut (T-shaped nut with flange)
  • Primary application: fastening wood, particleboard and composite panels with minimal projection above the surface
  • Design: long slender body with a flange at one end (T appearance in side view)
  • Retention feature: flange with spikes/hooks that bite into the workpiece when the bolt is tightened from the opposite side
  • Available thread sizes: M5, M6, M8, M10
  • Measurement units: millimeters
  • Compliance: RoHS compliant; UL94 and IP not indicated
  • Resources: downloadable drawing PDF and product video available on the product page
