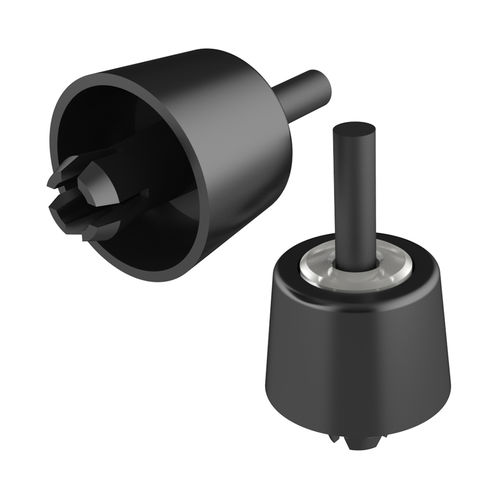

Plug-in bumper MGAA

furniture

Product description
This rivet-shaped bumper is designed for quick panel fastening. Installation is simple: insert the rivet bumper into the panel hole and strike the head; the legs expand to secure the fastener in the panel. The part provides reliable retention under vibration and offers electrical insulation and corrosion resistance where applicable.

Compliance and files
Drawing PDF: available
UL94: V2
IP: not specified
RoHS: yes
Measures expressed in: Millimeters
Video: available

Available references (table)
Reference | Panel hole diameter (mm) | Panel Thickness (mm) | D | H | E
01300600010 | 6,00 | 0,80 to 2,00 | 12,00 | 4,30 | 5,25
01300600011 | 7,00 | 1,50 to 3,00 | 16,00 | 6,90 | 6,85
01300600012 | 7,70 | 0,90 to 1,50 | 16,00 | 12,50 | 8,00
01300600013 | 7,00 | 1,00 to 2,50 | 17,00 | 11,20 | 3,75
01300600014 | 7,70 | 0,80 to 4,00 | 21,00 | 15,80 | 6,65

Characteristics / technical specifications

• Brand: ISC Plastic Parts
• Model: MGAA
• Available references: 01300600010, 01300600011, 01300600012, 01300600013, 01300600014
• Type: rivet-shaped bumper for panel fastening
• Installation: insert into panel hole and strike head; legs expand to secure
• Panel hole diameter and panel thickness: see table (mm)
• D, H, E dimensions: see table (mm)
• UL94 rating: V2
• RoHS: compliant
• IP rating: not specified
• Measures expressed in millimeters
• Available media: drawing PDF, video
