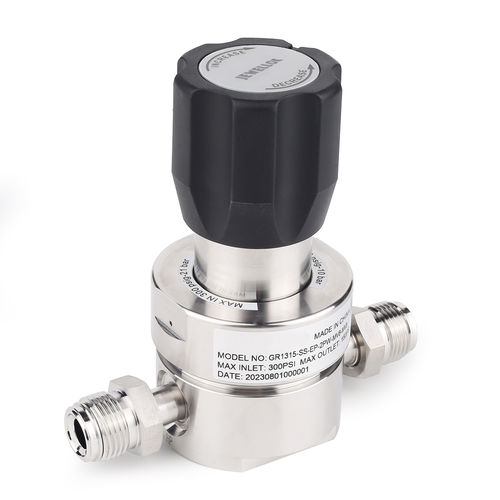

Gas pressure regulator JR1300

diaphragmsingle-stagestainless steel 316L

JR1300 Series Single Stage Regulator
Low to intermediate flow.

Features

• Body material: SS 316L, SS 316L VAR.
• Metal-to-metal diaphragm sealing.
• Internal electrolytic polishing, with a smoothness of up to Ra 5 μin.
• Compact internal volume.
• Maximum inlet pressure: 600 psig.
• Flow coefficient (Cv): 1.1.
• Maximum flow rate: 1000 SLPM.
• High cleanliness assembly and packaging suitable for ultra-high purity applications.
• Each product undergoes helium testing before shipment.

Technical Data
Technical data and performance charts (flow curve, flow coefficient, etc.) are provided on the product page as specification diagrams and tables.

Product Size
Dimensions, in millimeters, are provided for reference and are subject to change.

Flow curve
JR1300 Series flow curve and performance plots are provided in the product technical diagrams.

Ordering Information
The images on the product page show standard ordering specifications and available configurations.

Specifications / Technical details

• Model / Series: JR1300 Series
• Body material: SS 316L, SS 316L VAR
• Diaphragm sealing: Metal-to-metal
• Surface finish: Internal electrolytic polishing up to Ra 5 μin
• Internal volume: Small internal volume design
• Maximum inlet pressure: 600 psig
• Flow coefficient (Cv): 1.1
• Maximum flow rate: 1000 SLPM
• Assembly: High cleanliness assembly and packaging
• Quality test: Helium testing performed on each product before shipment
