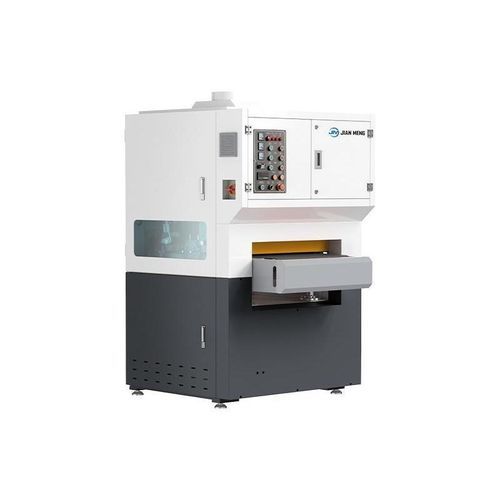

Abrasive belt deburring machine XDP-RRgrindingpolishingdeslagging
Add to favorites
Compare this product
Characteristics
- Type
- abrasive belt
- Associated function
- grinding, polishing, deslagging, brushing
- Applications
- metal parts, aluminum parts, for steel parts
- Other characteristics
- automatic, CNC, wet
- Working width
Max.: 1,600 mm
(62.99 in)Min.: 600 mm
(23.62 in)
Description
Product Overview
The XDP-RR Series deburring and brushing machine is designed for efficient metal surface treatment. Equipped with dual wide sanding belt structures, it effectively removes slag, oxide scales, and burrs, while achieving high-quality wire drawing effects. Suitable for stainless steel, carbon steel, copper, and aluminum alloys, it enhances production efficiency and product value.
Control System
Features an intelligent button-based control system with ergonomic design, reducing operational difficulty and improving efficiency. Includes real-time monitoring with alarm functions for belt deviation, workpiece jamming, and motor overload. Emergency stop button ensures safety.
Abrasive Consumables
Technical Specifications
Processing width: 600/1000/1300/1600mm
Processing thickness: 1-100mm
Feeding rate: 1-7m/min
Abrasive belt speed: 1-15 m/min
Platform height: 900-1000mm
Minimum processing size: 10*10 mm
Rated voltage: 380V/3P/50HZ
Operating pressure: 0.6-0.8Mpa
Optional Features
The XDP-RR Series deburring and brushing machine is designed for efficient metal surface treatment. Equipped with dual wide sanding belt structures, it effectively removes slag, oxide scales, and burrs, while achieving high-quality wire drawing effects. Suitable for stainless steel, carbon steel, copper, and aluminum alloys, it enhances production efficiency and product value.
Control System
Features an intelligent button-based control system with ergonomic design, reducing operational difficulty and improving efficiency. Includes real-time monitoring with alarm functions for belt deviation, workpiece jamming, and motor overload. Emergency stop button ensures safety.
Abrasive Consumables
- Abrasive belt: Used for grinding, deburring, polishing, and wire drawing. Enhances surface quality and appearance through contact and friction.
Technical Specifications
Processing width: 600/1000/1300/1600mm
Processing thickness: 1-100mm
Feeding rate: 1-7m/min
Abrasive belt speed: 1-15 m/min
Platform height: 900-1000mm
Minimum processing size: 10*10 mm
Rated voltage: 380V/3P/50HZ
Operating pressure: 0.6-0.8Mpa
Optional Features
- Wet dust collection system
- PLC CNC touch screen control
