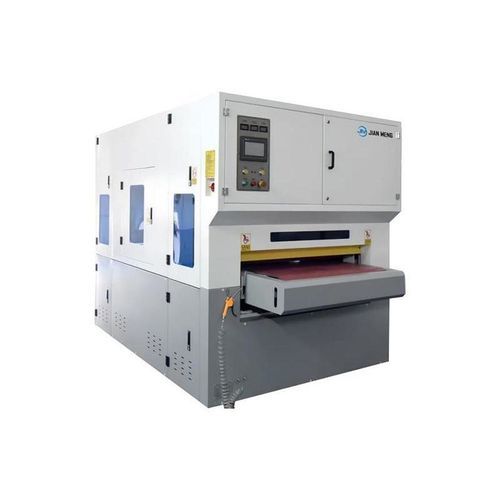

Brush deburring machine XDP-800RPR

abrasive beltsandingbrushing

General Description
The Jianmeng XDP-800RPR vacuum deburring machine achieves efficient and precise deburring and surface treatment functions through the coordinated use of sand belt polishing, universal roller brush chamfering, and vacuum adsorption system. The roller brush has the functions of self-rotation and revolution, which can deeply process burrs on the edges and hole positions of the workpiece, while achieving uniform chamfering and drawing effects. Using a high-damping rubber conveyor belt, combined with a strong vacuum suction fan, ensures the stability and positioning accuracy of the workpiece during high-speed operation. The XDP-800RPR deburring and wire drawing machine can efficiently process the edges of metal parts and plates, remove rough burrs left during the manufacturing process, and ensure smooth and safe surfaces through sanding, universal roller brush chamfering, and vacuum suction system. The sheet metal deburring machine can effectively remove the oxide layer on the metal surface and the heat-affected zone after welding, improving the adhesion of coatings and paints. The equipment is equipped with a 5KW wet dust collection system.

Main Components

• CNC Display Screen: A key component for centralized display and control of all operational parameters, allowing precise adjustments and real-time feedback.
• Roller Brush: Used for deburring, brushing, cleaning, polishing. Composed of multiple bristles, its material, hardness, and arrangement are adjustable according to needs. It effectively removes impurities such as burrs, oxides, and oil stains.
• Consumables: Abrasive belt (sand belt) for grinding, deburring, polishing, finishing, and wire drawing. The roller brush is also a key consumable for metal processing and oxide layer removal.

Comparison Before/After Deburring

• Before Deburring: Rough edges and sharp burrs affecting assembly precision, possible presence of oxide layer and surface imbalance.
• After Deburring: Smooth edges without burrs, improved safety, more aesthetic metal surface, increased dimensional accuracy, better adhesion for subsequent processes (welding, painting, electroplating).

Structure
Structure: 1 wide sand belt + 4 roller brushes + 1 wide sand belt

Features / Technical Specifications

• Wide workbench surface: 800 mm
• Processing thickness: 1 to 90 mm
• Minimum processing size: 50*50*0.5mm (non-perforated plate)
• Feeding speed: 1-7m/min (variable frequency adjustable)
• Belt speed: 2.2-11m/min
• Roller brush speed: 9-18m/min
• Revolution speed: 9-19m/min
• Maximum power: 39.15 kW (excluding dust collector)
• Rated voltage: 380V / 3P / 50HZ
• Atmospheric pressure: 0.6-0.8Mpa
• Sand belt size: 1900 * 650mm
• Roller brush size: 250 * 300 * 40mm
• Host weight: About 3000kg
• Size: 3200*1650*2250
