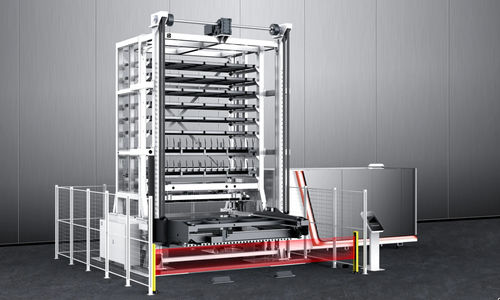

Compact storage tower iTower

for sheet metalflexible

Overview
As an automatic loading device, iTower is compatible with various cutting machines. It has a compact structure and small footprint, enabling automatic loading and unloading of metal sheets and storage of raw materials and finished products.

Key features

• Small Footprint: Featured with the compact 3D design, the iTower occupies less space with flexible layout options, thus achieving maximum space utilization of the workshop.
• Error Warning: Material detection, shortage alarms and abnormal material quantity alarms help prevent cutting issues and reduce scrap rates.
• Multi-Sheet Separation: Intelligent sheet separation, air-blowing separation, and magnetic separation are available and can be chosen based on requirements.
• Multi-Spec Sheet Processing: Handles different sheet sizes with a single-click adjustment; different shapes and thicknesses of sheets can be processed in a queue.

Compatible models (examples shown on page)

• Bodor P (Professional Model)
• Bodor SC
• Bodor Dream
• Bodor M (Tube flagship)
• Bodor SK (High-speed tube cutter)
• Bodor T
• Bodor Q
• Bodor K
• Bodor CT / Bodor AT (sheet & tube combined models)
• iTrans / iTransTower / iLoader (automation / loader family)

Technical parameters (table)
Loading Dimensions: 1250mm*1250mm - 3000mm*1500mm
Overall Dimensions: 11000mm*8500mm*6200mm
Max. Loading Sheet Size: 3000mm*1500mm
Min. Loading Sheet Size: 1250mm*1250mm
Max. Sheet Thickness: 6mm
Min. Sheet Thickness: 1mm
Machine Weight: 10000KG
Max. Loading Weight: 300kg

Notes
* All product information provided on the website is for reference only; specific details are subject to the actual product.
* The iTower enables unattended operation for short periods, adding value and boosting efficiency.
