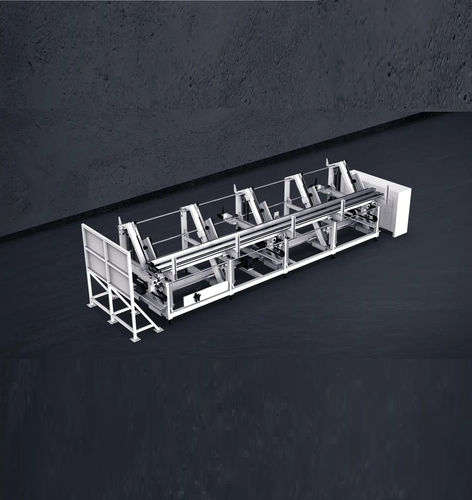

High-performance automatic loader K-Trans series

Overview
The K-Trans automatic loading device is engineered to automate tube feeding for K-series main units (K0, K1, K1 Plus, K2). It handles multiple tube profiles — round, square, rectangular and elliptical — to reduce manual handling and increase line throughput.

Key advantages

• Wide material compatibility: supports cyclic automatic feeding across a broad range of diameters and profiles (see specifications).
• Increased load capacity: belt-type material storage raises on-board capacity, reducing refill frequency (storage capacity up to 1500 kg).
• Flexible layout: unit can be lifted and positioned on either side of the main machine and configured for mirrored K1 setups.
• Simplified operation: integrated BodorThinker control system coordinates loading with the main unit, eliminating the need for one operator to manage two machines.
• Improved clamping success: centering rollers align tubes to ensure precise loading and higher chuck clamping reliability.
• Lower energy consumption: material handling phases (preparation, loading, unloading) are cylinder-driven for faster cycles and reduced power draw.

Compatibility / Compatible models

• K0
• K1
• K1 Plus
• K2

Features / Technical specifications

• Intended main units: K0, K1, K1 Plus, K2.
• Station type: storage-style station (belt-type material storage).
• Supported tube types: round tube, square tube, rectangular tube, elliptical tube, etc.
• Tube size range: Φ16–Φ120 mm (round); □20–□120 mm (square/rectangular).
• Maximum tube weight (per tube): 80 kg.
• Maximum material storage capacity: up to 1500 kg.
• Material storage: belt-type storage for higher capacity.
• Alignment / clamping: centering rollers to improve chuck clamping success rate.
• Drive / energy: cylinder-driven handling for preparation, loading and unloading.
• Control system: BodorThinker integrated control to simplify coordination with the main unit.
