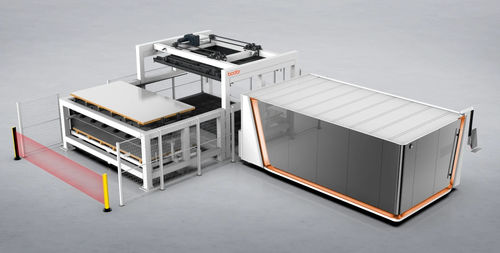

Sheet loading and unloading system iTrans

flexibleautomatic

Overview
The iTrans automatic loading and unloading device is compatible with various cutting machines, enabling automatic sheet material handling with minimal manual intervention.

Key Features

• Synchronized Loading/Unloading - Breaks through the traditional limitation where loading and unloading cannot be done in parallel, enabling simultaneous operations to increase throughput.
• Smart Zoning - Can load different-sized sheets with size adjustment via a single click, significantly reducing manual intervention.
• Queued Processing - Supports automatic queued processing for different shapes and thicknesses of sheets to optimize production flow.
• Error Warning - Material detection with shortage alarms and abnormal material quantity alarms to reduce scrap rates.

Compatible Models

• Bodor P (Professional Model)

Caractéristiques / Spécifications techniques

• Loading Dimensions: 3000mm*1500mm
• Overall Dimensions: 10000mm*8500mm*2600mm
• Max. Loading Sheet Size: 3000mm*1500mm
• Min. Loading Sheet Size: 1000mm*1000mm
• Max. Sheet Thickness: 25mm
• Min. Sheet Thickness: 0.8mm
• Machine Weight: 4800kg
• Max. Loading Weight: 900Kg

*All product information provided on this website is for reference only. Specific details are subject to the actual product.
