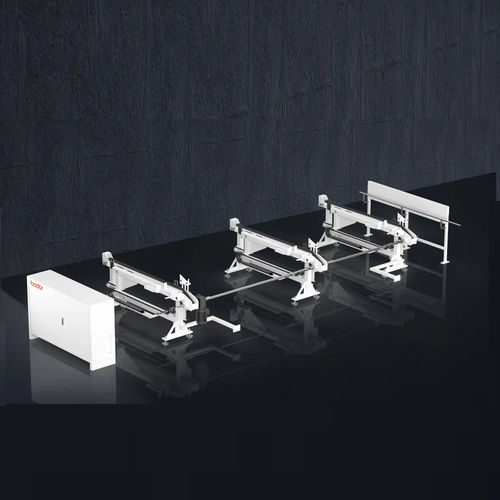

Semi-automatic loading system K-Loader

Overview
K-Loader is an auxiliary loading device compatible with K1 and K2 machines. It enables automatic cyclic loading of square, round, rectangular and elliptical tubes, reducing manual handling and material waste while improving processing throughput.

Key features

• Larger loading dimensions: automatic cyclic loading for round tubes φ20–φ120 mm and square/rectangular tubes □20–□80 mm.
• Faster loading speed: cyclic feeding time reduced by approx. 21.3% versus previous generation.
• Higher load capacity: up to 10 round tubes can be stored in the material bin at maximum diameter.
• Smaller footprint: overall dimensions reduced by approx. 41% versus previous generation.
• Lower energy consumption: air-cylinder-driven mechanisms replace high-energy motors.
• Lower failure rate: simplified transmission and fewer electrical components improve reliability.

Compatibility and operation

• Compatible with K1 and K2 series machines (e.g., K2-65).
• Station arrangement: distributed loading stations.
• Supported tube types: square, round, rectangular, elliptical, etc.

Technical Parameters (summary)

• Compatible models: K2-65 (example).
• Tube size range: φ20–φ120 mm; □20–□80 mm.
• Max. tube weight: 80 kg per tube.
• Max. storage capacity: 1200 kg.
• Station quantity: distributed arrangement.
• Drive method: air-cylinder-driven mechanisms.
• Cyclic feeding improvement: approx. 21.3% faster.
• Footprint reduction: approx. 41% smaller than previous generation.

Models / Variants

• Model family: K-Loader (variants shown on page: K-Loader2-65, K-Loader1 Plus-65, K-Loader1-65, K-Loader0-65).
