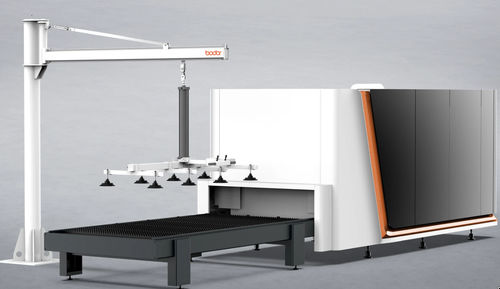

Space saving automatic loader iLoader eco

high-performance

Overview
iLoader eco is an auxiliary loading device with a compact structure and easy operation. It can conduct semi-automatic loading assistance for manual operation, saving time and effort.

Key Benefits

• Efficient Sheet Processing: auxiliary loading device for sheets up to 8mm, boosting sheet processing efficiency.
• Load for Two: one device can load materials for two cutting machines simultaneously.
• Max. Space Utilization: takes up minimal floor space, maximizing the use of production space.
• Flexible Positioning: can be positioned left or right according to the on-site processing environment.

Compatible Models

• Bodor P
• Bodor C
• Bodor B
• Bodor A
• Bodor L
• Bodor Rocut

Technical Parameters (summary)
Loading Dimensions: 400mm*400mm-1524mm*3048mm
Overall Dimensions: 3655mm×2200mm×3422mm
Max. Loading Sheet Size: 3048mm*1524mm
Min. Loading Sheet Size: 400mm*400mm
Max. Sheet Thickness: 8mm
Min. Sheet Thickness: 1mm
Machine Weight: 475Kg
Max. Loading Weight: 300Kg

caractéristiques / spécifications techniques

• Loading Dimensions: 400mm × 400mm up to 1524mm × 3048mm
• Overall Dimensions: 3655mm × 2200mm × 3422mm
• Maximum loading sheet size: 3048mm × 1524mm
• Minimum loading sheet size: 400mm × 400mm
• Maximum sheet thickness handled: 8mm
• Minimum sheet thickness handled: 1mm
• Machine weight: 475 Kg
• Maximum loading weight: 300 Kg
• Function: semi-automatic auxiliary loading for laser cutting machines; can feed two machines; compact footprint; left/right positioning.
