Sheet metal storage tower iTransTower

verticalautomatic

Overview
The automatic device iTransTower is compatible with multiple cutting machines and is capable of fully automatic sheet loading, unloading, and storage.

Key Features

• Integrated Functions: Integrates material loading, unloading and storage; can achieve simultaneous material loading and unloading with minimal manual intervention.
• Efficient Loading: One iTransTower can handle loading, unloading and storage for multiple cutting machines to streamline production and maximize productivity.
• Smart Zoning: Supports loading of different-sized sheets; sheet zones can be adjusted with a single click to greatly reduce manual operations.
• Error Warning: Material detection, shortage alarms and abnormal material quantity alarms reduce scrap rates and avoid interruptions.

Compatible Models

• Bodor P (Professional Model)

Visual / Media

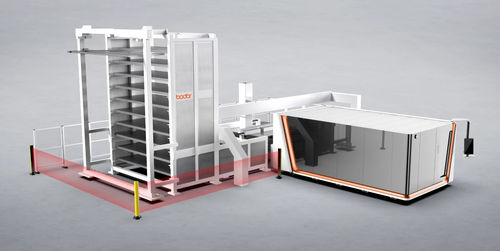

Banner image and product visuals show the iTransTower automation device in operation and illustrate loading/unloading/storage workflow.

Note
* All product information provided on this website is for reference only. Specific details are subject to the actual product.

caractéristiques / spécifications techniques

• Loading Dimensions: 1250mm × 1250mm – 3000mm × 1500mm
• Overall Dimensions: 11000mm × 11000mm × 6100mm (L × W × H) (The P3 main machine is included)
• Max. Loading Sheet Size: 3000mm × 1500mm
• Min. Loading Sheet Size: 1250mm × 1250mm
• Max. Sheet Thickness: 20mm
• Min. Sheet Thickness: 1mm
• Machine Weight: 12000kg
• Max. Loading Weight: 720kg
