Semi-automatic loading system M-Loader series

Overview

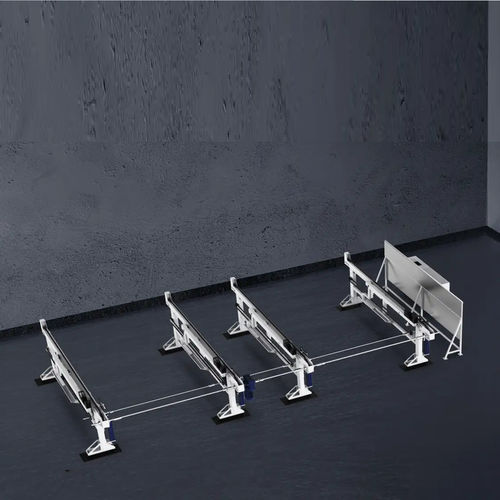

The M-Loader is an auxiliary loading device designed for integration with M-series machines (models M2, M3, M5). It automates loading of round, square and rectangular tubes, channel steel and I-beams to feed cutting or handling systems.

Key benefits

• Reduced footprint: module size reduced by approx. 30% versus the previous generation, saving floor space.
• Smart alarms and mid-cycle loading: material-shortage alarms and the ability to load during a cycle ensure continuous operation.
• High loading capacity: robot arm maximum loading weight 1.2 t; maximum storage/load capacity depends on configuration (page shows 1,800 kg and up to 4.8 t in different sections).
• Low failure rate: double-chain drive for stable operation and lower failure incidence.
• Wide supported tube sizes: supports round tubes Φ25–Φ340 mm and square tubes □25–□340 mm (supported range may vary by M-Loader model/configuration).
• High loading success rate: manufacturer indicates up to 100% loading success under correct configuration.

Compatible models and variants

• M-Loader variants: M-Loader2-65, M-Loader3-65, M-Loader3-92, M-Loader3-120, M-Loader5-120.
• Compatible machine models: examples include M2-65-35, M2-65-65 and other M-series cutting machines.

Technical specifications

• Compatible models: M2-65-35, M2-65-65 (and listed M-Loader variants).
• Station quantity: 6 stations for tubes Φ > 90 mm; 11 stations for tubes Φ <= 90 mm (model-dependent).
• Loading tube types: round, square, rectangular tubes; channel steel; I-beams.
• Tube size ranges: examples on page show round Φ20–Φ220 mm and Φ25–Φ340 mm; square □20–□220 mm and □25–□340 mm—exact range depends on chosen model/configuration.
• Rectangular tubes: side length ≥ 20 mm (model-dependent limits shown on page).
• Channel steel / I-beams: channel 5#–14# (15#–22# optional open chuck); I-beams 10#–14# (15#–22# optional).
• Max tube pickup weight (per pickup): 300 kg.
• Max storage capacity: examples on page show 1,800 kg; other sections indicate up to 4.8 t depending on system configuration.
• Robot arm maximum loading weight: 1.2 t.
• Drive: double-chain driven for lower failure rate; supports mid-cycle loading and material shortage alarms.

Notes
All product information on the website is for reference only; specific parameters and supported ranges depend on the exact M-Loader variant and the integrated machine and should be confirmed on the actual product documentation.
