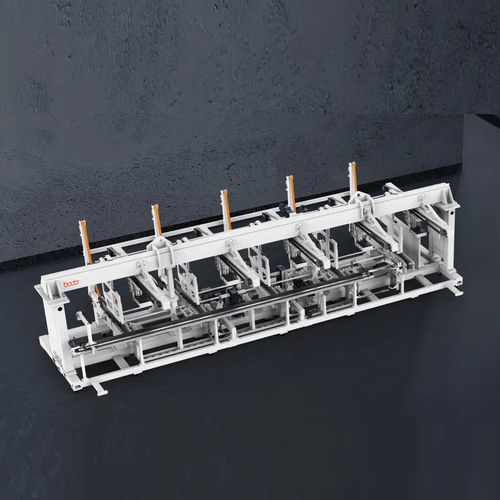

Automatic loader M-Trans

Overview

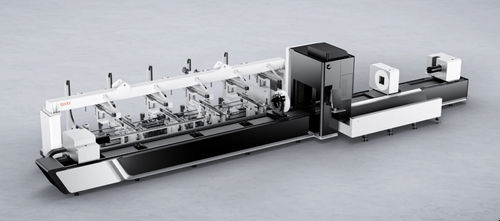

The M-Trans is an automatic tube loading device designed for the M2 series. It enables fully automatic cyclic loading of round, square and rectangular tubes, reducing loading time and improving processing continuity and efficiency.

Key features

• BodorThinker control system: simplifies operation and removes the need for one operator to manage two machines.
• Smart alarms and mid-cycle feeding: material-shortage alerts and the ability to feed mid-cycle maintain uninterrupted loading.
• Fully automatic cyclic loading: supports continuous automatic loading of tubes to increase throughput and stability.
• Wide loading range: round tubes Φ20–Φ220 mm; square tubes □20–□220 mm; rectangular tubes with side lengths between 20 mm and 220 mm.
• Tube protection: rubber pads prevent surface scratches during handling.
• Belt storage with increased capacity: storage capacities of 2000 kg (6.5 m) and 3000 kg (9.2 m); bundle diameter up to 900 mm.

Compatible models

• M2-65-35
• M2-65-65

Technical specifications

• Application: automatic loading of round, square and rectangular tubes for M2 machines.
• Supported tube types: round, square, rectangular.
• Tube size range:
  Round: Φ20–Φ220 mm
  Square: □20–□220 mm
  Rectangular: side length 20–220 mm
• Max tube weight: 150 kg (example); reference value 23 kg/m.
• Storage capacity: 2000 kg (6.5 m) or 3000 kg (9.2 m).
• Storage system: belt storage; bundle diameter up to 900 mm.
• Control: BodorThinker control system with material-shortage alarms and mid-cycle feeding.
• Protection: rubber pads to prevent tube scratches during loading.
