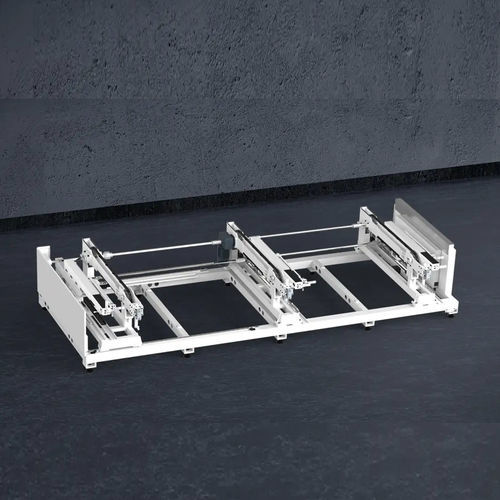

Tube lifter T-Loader series

Overview
The T-Loader is an auxiliary loading device for Bodor T-series laser tube systems (models T2 and T3). It automates loading of round, square and rectangular tubes to increase throughput, reduce loading time and raise the automation level.

Key features

• Smart alarms — material shortage and mid-cycle loading alarms enable continuous feeding and maintain processing continuity.
• Smaller footprint — module size reduced by approximately 30% compared with the previous generation.
• Higher load capacity — robotic-arm loading up to 1.2 t; maximum storage load up to 4.8 t (general statement).
• Low failure rate — double-chain drive for simplified operation and improved reliability.
• Wide tube size range — supports round, square and rectangular tubes across ranges indicated in model specifications.
• High loading success rate — design claims up to 100% loading success under described conditions.

Compatibility / Application

• Designed as an auxiliary loader for Bodor T-series (T2 and T3) laser tube cutting systems.
• Typical variants: T-Loader2-65, T-Loader2-92, T-Loader3-65, T-Loader3-92.

Notes

• Some capacity and size ranges are presented as general statements (e.g. Φ25–Φ340 mm) while model-specific tables may list alternative ranges (e.g. Φ20–Φ220 mm); refer to the technical specifications for the selected configuration.
• Example model-specific figures shown on the product page: station count 11 (Φ ≤ 90) or 6 (Φ > 90); max tube weight 300 kg (per tube); example storage capacity 1800 kg for the illustrated configuration.
• All data are indicative; final values depend on the selected model and configuration.

Specifications

• Product name: T-Loader
• Compatibility: T2, T3 (Bodor T-series)
• Supported tube types: round, square, rectangular
• General supported ranges: round tubes Φ25–Φ340 mm; square tubes 25×25–340×340 mm (see model table for alternatives)
• Robotic-arm max loading weight (general): 1.2 t
• Maximum storage load (general): 4.8 t
• Example model-specific max tube weight: 300 kg (per tube)
• Example model-specific max storage capacity: 1800 kg
• Drive: double-chain
• Module footprint: approx. 30% reduction vs previous generation
• Loading success rate: up to 100% (per product claims)
