1.Application:

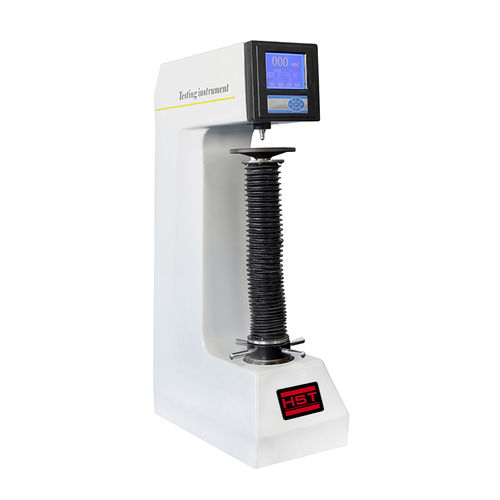

HRS-150B High Stroke Digital Display Rockwell Hardness Tester adopts novel-designed large LCD screen to display, as well as menu structure.
It mainly functions are as follows:
1.1. Lever Loading, durable and reliable, the test process automation, no human operator error.
1.2. LCD automatically display the hardness value, and can be converted hardness.
1.3. Built-in printer, automatic printing hardness results.
1.4. Precision hydraulic buffers, steady load.
1.5. No friction spindle, high precision test force.
1.6. Accuracy according to GB / T230.2, ISO 6508-2 and American ASTM E18 standard.
2.Usage Range:
Rockwell hardness measurement of ferrous metals, non-ferrous metals and non-metallic materials.
Wide range of applications, suitable for rockwell hardness testing of hardening, quenching and other heat-treated material.
3.Main Specifications:
ModelHRS-150B
Measuring Range20-88HRA, 20-100HRB, 20-70HRC
All Testing Force60 kgf (588.4N), 100 kgf (980.7N), 150 kgf (1471N)
Max. Height Of Speciment400 mm
Max. Depth Of Speciments165 mm
Min. Scale Value0.5HR
Indication Of Hardness ValueDigital Display With Large LCD Screen
Net Weight140 KG
Overall Dimension548 x 326 x 1025mm
Power SupplyAC220V, 50Hz
