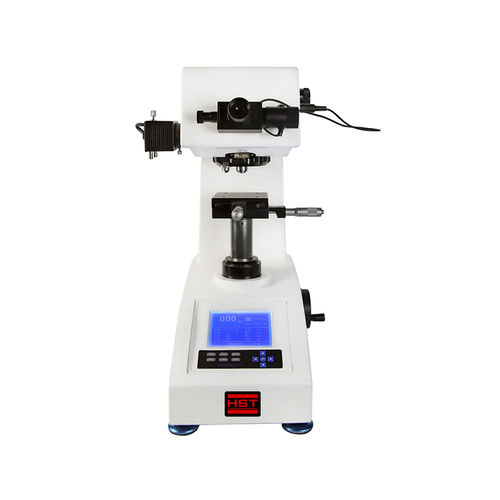

Micro Vickers hardness tester HVS-1000

benchtopfor non-ferrous metalsmetal

VS-1000 manual turret digital display micro-vickers hardness tester LCD display screen is adopted, and the operation interface adopts menu structure. The hardness scale HV or HK can be selected on the operation panel. The hardness value tested will be automatically calculated and displayed. Various hardness values can be converted to each other. The hardness error can be corrected by software input to make the hardness more accurate. Test results can be automatically stored, processed and printed. The HVS-1000 digital display microhardness tester has manual switch between the head and the objective lens during the test, and the test point positioning is accurate. Application： Heat treatment, carbonization, hardening layer, surface coating, steel, nonferrous metals, small and thin parts, etc. Technical Parameter Minimum test unit - 0.031µm Exchange Scales HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T Measuring range - 5~3000HV Test method of force application - Automatic( loading, dwelling,unloading ) Test microscope magnification - 100X（objective）400X(measurement) Test load dwell time - 0~60s X-Y table - size：100*100mm Mx. movement：25*25mm data output - LCD display，Built-in printer and rs-232 interface Max Height of Specimen - 110mm
