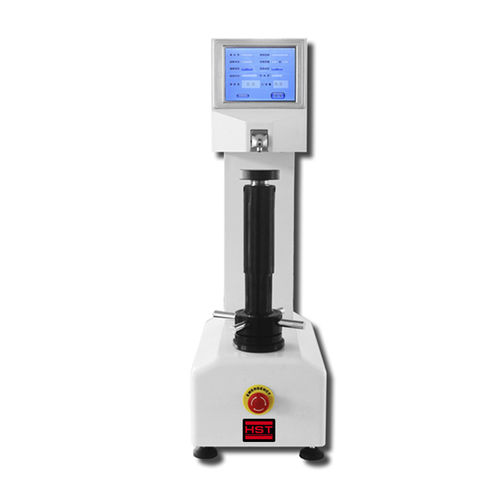

HRS-45DXC NOSED AUTOMATIC ROCKWELL HARDNESS TESTER
Applications:
Industrial production, Inspection of product quality on processing technology. Ferrous and nonferrous metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide materials, powder metallurgy materials, hardness and thermal spray coating. Sheet metal, thin-walled pipe, hardened steel, and small parts of hardness. Widely used in machinery manufacturing, metallurgy plants, universities, laboratories, etc.
Technical specifications:
Conversion Scale - Brinell, Vickers
Display of Hardness Value - Touchable Large LCD screen display
Data output - Inside Printer, RS-232
Duration time - 0-60s
Carried Standard - BSEN 6508, ISO 6508, ASTM E18, GB/T230
Preliminary Testing force - 3.0kgf(29.4N)
Testing force - 15kgf(147.1N) 30kgf(249.2N) 45kgf(441.3N)
Hardness measuring range - HR15N:70-94 HR30N:42-86 HR45N:20-77
HR15T:67-93 HR30T:29-82 HR45T:1-72
Test force Deviation - ≤0.5%
Testing accuracy - 0.1
Max Height of Specimen - 300mm
Distance of Indenter to outer wall - 250mm
Power supply - AC220V+5%,50-60Hz
Overall Dimensions - 720×260×840mm
Data Output - USB Flash Disk
