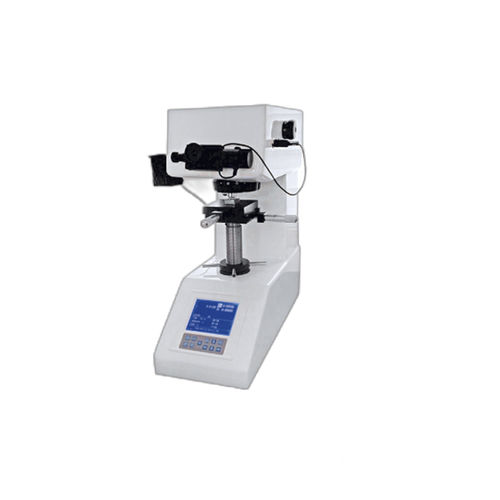

Micro Vickers hardness tester HVS-1000ZTbenchtopfor steelmetal
Add to favorites
Compare this product
Characteristics
- Type
- micro Vickers
- Mounting
- benchtop
- Product applications
- for steel, metal, for metallographic samples, for non-ferrous metals, for hard plastics, for production, for large components, for aluminum, for laboratory, for quality control, for stainless steel, for laboratory applications, for measurement instruments
- Other characteristics
- with printer, digital display, with image analysis, automatic, analog, superficial, motorized, micro, mechanical, with PCT touch screen, cost-effective, with data logger
- Load
Max.: 19.612 N
Min.: 0.1 N
- Weight
25 kg
(55.1 lb)
Description
Heat treatment, carbonization, hardening layer, surface coating, steel, nonferrous metals, small and thin parts, etc.
Technical Parameters
Turret Type
Automatic
Loading and unloading mode
Automatic
Dwell Time
Adjustable 0 to 60 seconds
Micrometer eyepiece multiple
10X(optional 15X)
Me measurement resolution
0.25µm (drum reading)
Objective magnification
10X 40X
Total magnification
100X （objective）400X(measurement)
measurement range
150µm
light source
Halogen lamp (brightness adjustable)
Hardness conversation
Brinell, rockwell, surface rockwell
Max. Height of Specimen
80mm
Depth at center line
95mm
XY test table size
100X100mm Max. movement：25*25mm
Min. Measuring Unit
0.01μm
