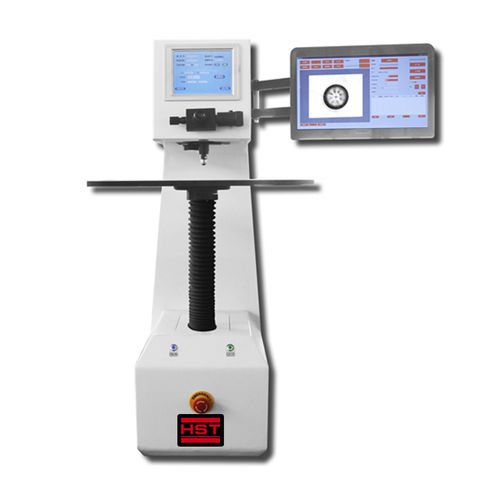

Brinell hardness tester HBS-3000DWmanualbenchtopfor hard plastics
Add to favorites
Compare this product
Characteristics
- Type
- Brinell
- Mounting
- benchtop, manual
- Product applications
- metal, for non-ferrous metals, workpiece, for steel, for laboratory, for hard plastics, for quality control, for laboratory applications, for stainless steel, for measurement instruments, industrial, for small parts, for production
- Other characteristics
- digital display, semi-automatic, with image analysis, cost-effective, electric, with data logger
- Load
Min.: 187.5 kgf
Max.: 3,000 kgf
- Weight
210 kg
(463 lb)
Description
Over-position automatic protection, automatic experiment process, unmanned operation error, large LCD liquid
crystal display, intelligent menu prompts, convenient operation, high-precision reading microscope
measurement system.electrical integrated product with a precise mechanical structure and a
microcomputer-controlled closed-loop system. feedback by a 0.5‰ precision pressure sensor, CPU control
and can automatically compensate for the test force lost in the test.
Specifications:
Testing Range
8-650HBW
Measuring device resolution
0. 1um
Dwell time
0~60s
Distance Between Pressing Head CenterAnd The Wall
120mm
Dimension
700*268*842 mm
Voltage
AC220V,50Hz
