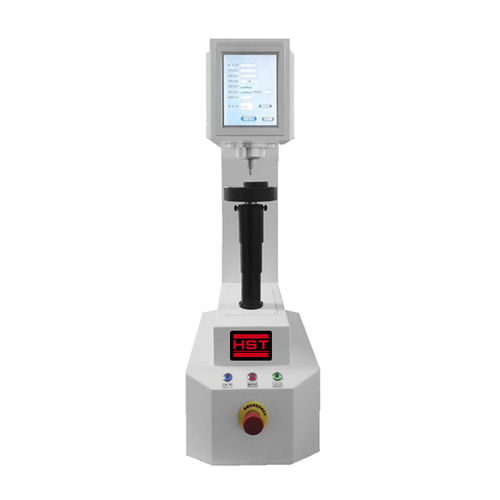

Rockwell hardness tester HSRS-45
benchtopfor non-ferrous metalsfor ferrous metals

Rockwell hardness tester
Rockwell hardness tester
Add to favorites
Compare this product


Characteristics

Type
Rockwell
Mounting
benchtop
Product applications
for non-ferrous metals, for ferrous metals
Other characteristics
digital display

Description

1.Main Features: Model HSRS-45 Digital Superficial Rockwell Hardness Tester with plan a kind of more advanced, the big screen display and operation of the digital display the surface hardness value rockwell hardness plan. The big screen touch operation, may to the surface hardness choose rod los type, digital first test data, various hardness value of the conversion between. And with the testing data storage, print, RS-232 super terminal Settings, and other functions, the machine has good visual and stability. 2.Usage Range: Surface hardness steel, material surface heat treatment and chemical processing, copper, aluminum, zinc, tin plate, chrome materials, bearing steel, cold hard castings, etc. 3.Technical Specifications: ModelHSRS-45 Conversion Scale Rockwell, Brinell, Vickers Indication Of Hardness ValueLCD Display Max. Height Of Specimen165mm Date OutputInside Printer, RS-232 Net WeightAbout 50 KG Power SupplyAC 220V, 50Hz Overall Dimension520*240*720mm Duration Time2-60s Carried StandardGB/T231.2 Chinese Standard, JJG150 Inspection Rule Distance Of Indenter To Outer Wall160mm Preliminary Testing Force3 kgf (29.42N) Testing Force15kgf (147.1N); 30kgf (294.2N); 45kgf (441.3N) Rockwell ScaleHR15N; HR30N; HR45N; HR15T; HR30T; HR45T Hardness Measuring ScaleHRA:20-88; HRB:20-100; HRC:20-70 HRD:40-77; HRE:70-100; HRF:60-100 HRG:30-94; HRH:80-100; HRK:40-100
