1.Application:
Rockwell hardness measurement of ferrous metals, non-ferrous metals and non-metallic materials.
Wide range of applications, suitable for rockwell hardness testing of hardening, quenching and other heat-treated material.
It mainly functions are as follows:
1.1. Lever Loading, durable and reliable, the test process automation, no human operator error.
1.2. No friction spindle, high precision test force.
1.3. Precision hydraulic buffers, steady load.
1.4. Dial display the hardness value, HRA, HRB, HRC, and can choose other Rockwell Scale.
1.5. Accuracy according to GB / T230.2, ISO 6508-2 and American ASTM E18 standard.
2.Specifications:

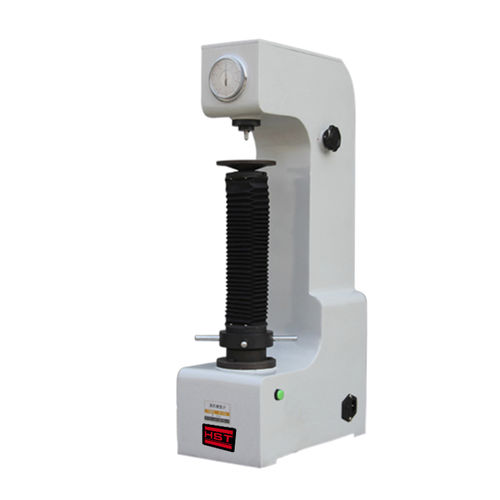

ModelHRD-150B
Measuring Range20-88HRA, 20-100HRB, 20-70HRC
Test Force588.4, 980.7, 1471N (60, 100, 150kgf)
Max. Height Of Speciment400 mm
Max. Depth Of Speciments165 mm
Min. Scale Value0.5HR
Power Supply220V AC, 50Hz
Dimensions548 x 326 x 1025mm
WeightApprox. 140 KG
