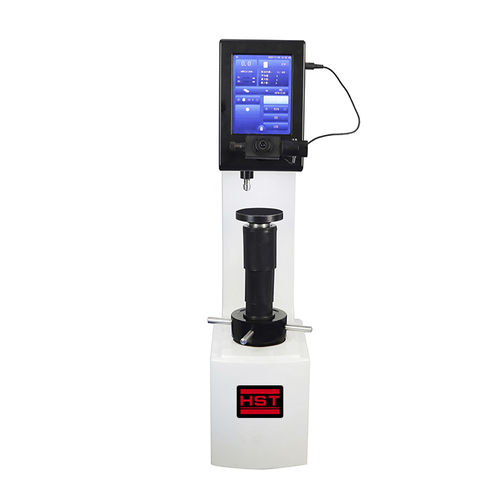

Brinell hardness tester HBS-3000Z
benchtopfor non-ferrous metalsfor railway applications

Brinell hardness tester - HBS-3000Z - Jinan Hensgrand Instrument Co.,Ltd - benchtop / for non-ferrous metals / for railway applications
Brinell hardness tester - HBS-3000Z - Jinan Hensgrand Instrument Co.,Ltd - benchtop / for non-ferrous metals / for railway applications
Brinell hardness tester - HBS-3000Z - Jinan Hensgrand Instrument Co.,Ltd - benchtop / for non-ferrous metals / for railway applications - image - 2
Add to favorites
Compare this product
Go to the Jinan Hensgrand Instrument Co.,Ltd website for more information

Characteristics

Type
Brinell
Mounting
benchtop
Product applications
for non-ferrous metals, for laboratory, for laboratory applications, for railway applications, for automotive applications, for aeronautical applications
Other characteristics
LCD digital display, automatic, motorized
Load

Min.: 62.5 kgf

Max.: 250 kgf

Weight

90 kg
(198.4 lb)

Description

Metallurgy ,metrology , Building materials, research institutes ,hardening shops, stainless steel, automotive, railway, energy, steel, aviation , roller plants, tube rolling mills, foundries, Technical Specifications: Max Height of Specimen - 200mm Main Measuring unit - 0.625µm Power supply - AC220+5%,50~60Hz Overall Dimension (mm) - 550*210*750mm Duration time - 5~60s Hardness Testing Range - 8~650HBW Magnification of Microscope - 20X Carried Standard - GB/T231.2 Chinese Standard, JJG150 Inspection Rule Distance of Indenter to outer wall - 135mm Indication of Hardness Value - LCD display, Printer Output, Inside Printer
