Clear water pump KGE
condensatefor crude oiloil

clear water pump
clear water pump
Add to favorites
Compare this product


Characteristics

Fluid
for clear water, condensate, for crude oil, oil
Operation
electric
Priming
self-priming
Technology
centrifugal
Mobility
stationary
Domain
for the construction industry
Applications
handling, irrigation, service, extraction, drainage, extraction
Material
cast iron, bronze
Other characteristics
horizontal mount, single-stage, close-coupled, radial, open, with closed impeller
Flow

Min.: 0 m³/h
(0 ft³/h)

Max.: 100 m³/h
(3,531.46667 ft³/h)

Pressure

Min.: 0 bar
(0 psi)

Max.: 8 bar
(116.03 psi)

Head

Min.: 0 m
(0'00" )

Max.: 60 m
(196'10" )

Fluid temperature

95 °C
(203 °F)

Description

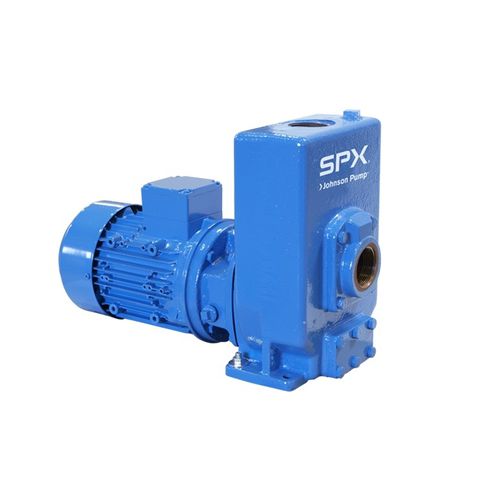

The KGE is a self-priming centrifugal pump with radial (semi-open or closed) impeller, overhung mounted on a bearing pedestal. If a spacer type coupling is used, the pump can easily be dismantled without the necessity of disturbing the pipings or moving the motor. The KGE series is available in different drive possibilities: KGE: pump with bare shaft for clockwise rotation KGEL: pump with bare shaft for counter-clockwise rotation KGEF: pump with flanged motor (close coupled) Suitable for Clean and polluted liquids that are non-corrosive to cast iron, including water, oils, petrol and all kind of chemicals. Draining building excavations, emptying ponds, ditches and swimming pools, water extraction for irrigation and watering, aboard ships as bilge, deck wash and general service pumps. Emptying pits and throughs containing wastewater, handling fuels, condensate extraction pumps.
