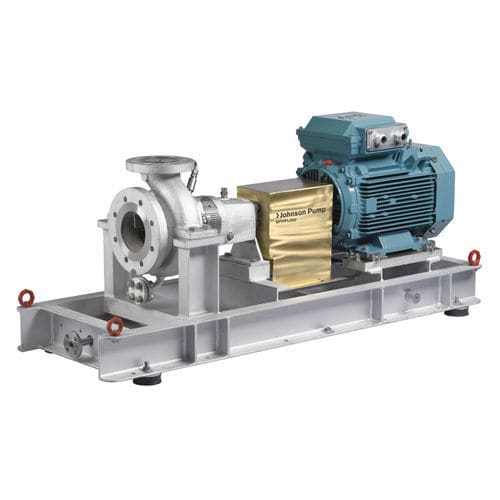

Oil pump CombiPro

electriccentrifugalstationary

Heavy duty horizontal process pump to API 610, API 682 Centre-line mounted end-suction pump overhung single stage process pump Design requirements according to API 610 Seal chamber to API 682 Pump casing and cover metal-to-metal fit with fully confined, controlled compression spiral wound gasket Fully integrated design pump, motor, base plate, and accessories Outstanding hydraulic performance High efficiency impeller Closed impeller or half open impeller with wear plate and external adjustment Dynamically balanced impeller Flanges according to ISO 7005 PN 50 / 300 lbs ANSI B 16.5 or ISO 7005 PN 20 / 150 lbs ANSI B 16.5 Atex certification Robust shaft design Extended life time 2 angular contact thrust bearings and cylindrical roller bearing Oil bath lubricated bearings Bearing housing cooling optional Easy maintenance through the Back-Pull-Out principle Renewable wear rings for casing and impeller Magnetic drive version according to API 685 optional Vertical version optional Suitable for Thin, clean and slightly contaminated liquids in chemical/petrochemical industry, refineries and general industrial applications
