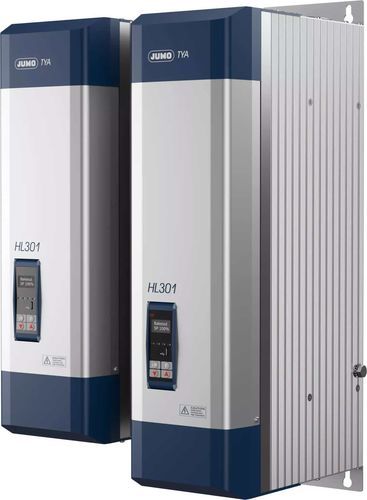

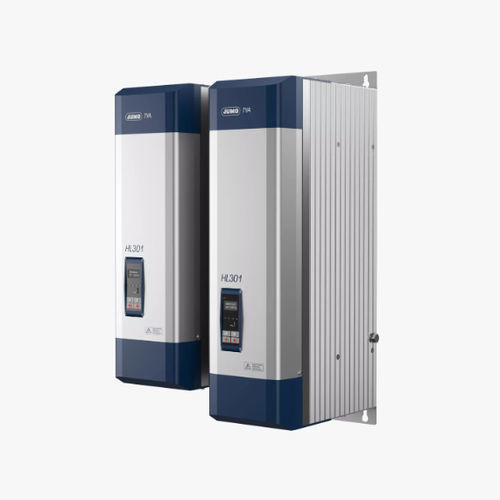

Phase angle controller JUMO TYA HL301
Add to favorites
Compare this product
Description
Overview
The JUMO TYA HL301 is a single-phase thyristor controller for non-linear loads, covering load currents from 300 to 800 A. Its compact design and top-bottom wiring facilitate installation in control cabinets. Integrated data logging and a built-in oscilloscope support monitoring and troubleshooting, while the setup wizard and comprehensive configuration options speed up commissioning.
Highlights
Customer benefits
Technical data (General technical data)
Load currents: 300 to 800 A
Load voltage: 230 to 690 V
Control types: U, I, P, U², I²
Approvals: cUL 508 (300–700 A, up to 600 V); UL (800 A, up to 600 V)
Interfaces: USB (Setup), Modbus RTU; optional: PROFINET, EtherNet/IP, Modbus TCP, EtherCAT, second Modbus RTU
Inputs: 2 digital inputs; 2 analog inputs (0–10 V, 0–20 mA, potentiometer)
Features: Compact size; Top-Bottom wiring; Setup wizard; oscilloscope; operator panel; Load management up to 24 zones (optional); data logging with SD memory
Caractéristiques / spécifications techniques
The JUMO TYA HL301 is a single-phase thyristor controller for non-linear loads, covering load currents from 300 to 800 A. Its compact design and top-bottom wiring facilitate installation in control cabinets. Integrated data logging and a built-in oscilloscope support monitoring and troubleshooting, while the setup wizard and comprehensive configuration options speed up commissioning.
Highlights
- Optional load management up to 24 zones
- Versatile communication: USB (setup), Modbus RTU; optional PROFINET, EtherNet/IP, Modbus TCP, EtherCAT
- Suitable for all load types (resistive, inductive, non-linear)
Customer benefits
- Flexible use across different load types and fieldbus interfaces
- Fewer product variants to stock thanks to configuration options
- Energy savings through optional load management
- Improved process reliability via data logging and oscilloscope
- Reduced cabinet space requirement due to compact footprint
Technical data (General technical data)
Load currents: 300 to 800 A
Load voltage: 230 to 690 V
Control types: U, I, P, U², I²
Approvals: cUL 508 (300–700 A, up to 600 V); UL (800 A, up to 600 V)
Interfaces: USB (Setup), Modbus RTU; optional: PROFINET, EtherNet/IP, Modbus TCP, EtherCAT, second Modbus RTU
Inputs: 2 digital inputs; 2 analog inputs (0–10 V, 0–20 mA, potentiometer)
Features: Compact size; Top-Bottom wiring; Setup wizard; oscilloscope; operator panel; Load management up to 24 zones (optional); data logging with SD memory
Caractéristiques / spécifications techniques
- Load currents: 300 to 800 A
- Load voltage: 230 to 690 V
- Control types: U, I, P, U², I²
- Approvals: cUL 508 (300–700 A, up to 600 V); UL (800 A, up to 600 V)
- Interfaces: USB (Setup), Modbus RTU; optional: PROFINET, EtherNet/IP, Modbus TCP, EtherCAT
- Inputs: 2 digital inputs; 2 analog inputs (0–10 V, 0–20 mA, potentiometer)
- Features: Compact size; Top-Bottom wiring; Setup wizard; oscilloscope; operator panel; Load management up to 24 zones (optional); data logging with SD memory
