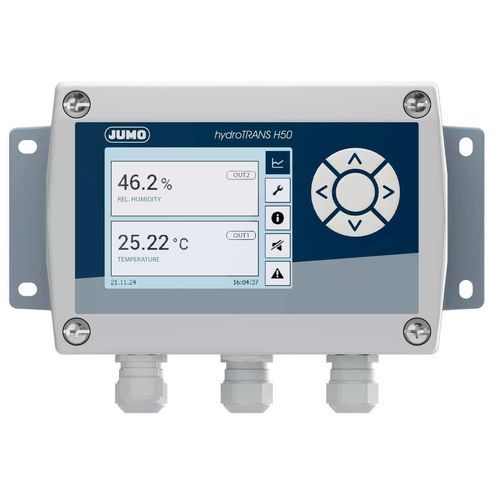

Fuel humidity and temperature sensor JUMO hydroTRANS H50relativeModbus0-10 V
Add to favorites
Compare this product
Characteristics
- Type
- fuel, relative
- Output
- Modbus, 0-10 V, 4-20 mA
- Other characteristics
- with data logger, with integrated digital display, heated, with replaceable sensor
- Applications
- for high humidity environment, for the food industry, for process applications
- Precision
0.95 %
- Measuring range (temperature)
Min.: -80 °C
(-112 °F)Max.: 180 °C
(356 °F)
Description
Description
The JUMO hydroTRANS H50 provides reliable temperature and humidity measurement in environments with high moisture or chemical contamination. Its extended temperature range and high pressure rating make it suitable for diverse industrial measurement tasks while an integrated data logger reduces system complexity.
Short description
Humidity and temperature sensor for industrial applications
Technical data
Special features
Application
Drying processes (food and beverages, thermoprocess technology), fuel cell applications
Technical specifications
The JUMO hydroTRANS H50 provides reliable temperature and humidity measurement in environments with high moisture or chemical contamination. Its extended temperature range and high pressure rating make it suitable for diverse industrial measurement tasks while an integrated data logger reduces system complexity.
Short description
Humidity and temperature sensor for industrial applications
Technical data
- Temperature range: -80 to +180 °C
- Accuracy: 0.95 % RH
- Pressure range: 0 to 300 bar
- Outputs: 4 to 20 mA; 0 to 10 V; alarm outputs (optional)
- Interfaces: Modbus
- Display: Color display
- Data logger: integrated
Special features
- Interchangeable probes
- Heating modes for high-humidity applications
- Cleaning function to remove chemical contamination
- Sensor coating
- Calibration certificate included
- Data logger function
Application
Drying processes (food and beverages, thermoprocess technology), fuel cell applications
Technical specifications
- SKU: 907055
- Model: JUMO hydroTRANS H50
- Brand: JUMO
- Temperature range: -80 to +180 °C
- Accuracy: 0.95 % RH
- Pressure range: 0 to 300 bar
- Outputs: 4 to 20 mA; 0 to 10 V; alarm outputs (optional)
- Interfaces: Modbus
- Display: Color display
- Special features: Interchangeable probes; heating modes for high-humidity applications; cleaning function; sensor coating; calibration certificate; data logger
- Short description: Humidity and temperature sensor for industrial applications
