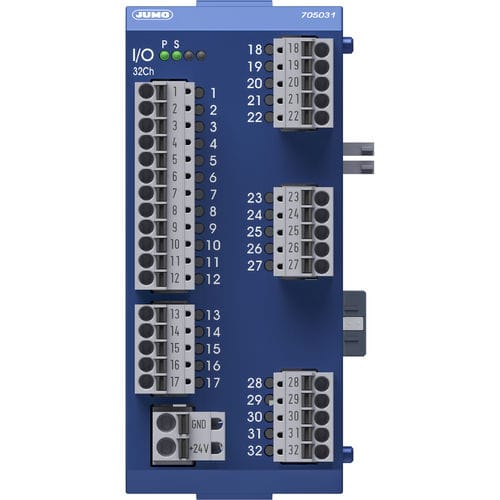

Digital I/O module 705031

multi-channelautomationfor sensors

The module offers 32 channels. Of these, 17 are configured as digital outputs by default. Up to 3 option cards with 5 channels each can be used to add digital inputs and outputs. The digital input signals can be further processed in the JUMO variTRON central unit. The digital outputs forward signals that are transmitted by the system bus. • Flexibly configurable inputs and outputs • High load capacity per digital output • Convenient, flexible planning of a plant Number of channels 32 Measurement inputs up to 15 digital inputs DC 24 V (optional) Outputs 17 fixed and optionally up to 15 additional digital outputs DC 24 V, max. 500 mA Special features 3 optional expansion slots for 5 digital inputs or outputs each, switching statuses are visualized with LEDs, external voltage supply for digital inputs/outputs via terminal on the front, automatic configuration after replacement of the module insert (Plug and Play), connection of inputs on the front, removable terminal strips with PUSH IN technology, fast wiring of operating voltage and system bus provided by simple module connection principle Connection Removable terminal strips with PUSH IN technology on the front Voltage supply C 24 V +25/-20 %, external voltage supply for outputs on the front panel: DC 24 V +25/-20 % SELV Housing Plastic housing for DIN-rail mounting in the control cabinet Protection type IP20 Ambient temperature range Dimensions (W × H × D) 45 mm × 103.6 mm × 101.5 mm (without connection elements)
