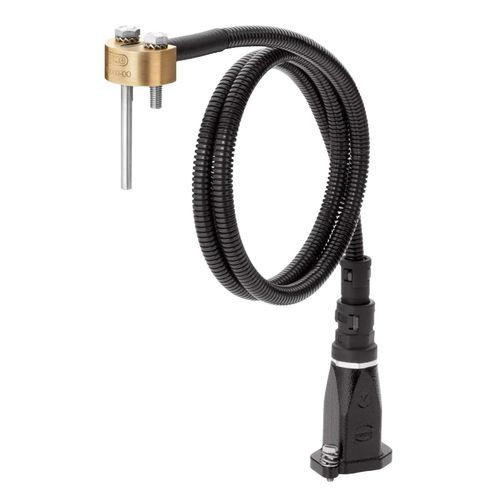

NTC temperature sensor railTEMP

Pt1000Pt100bare wires

Description
JUMO railTEMP incorporates a qualified measuring insert developed for railway applications with up to two sensing elements. The probe accepts multiple sensor types and is fitted with a permanently attached, halogen-free connection cable available with various terminations or high-quality connectors. Cable protection and halogen-free materials provide enhanced safety and reliable measurements in rail transport.

Short Description
Wheelset temperature probe

Areas of application
Railway technology, rail-based vehicles

Approvals
DIN EN 50155, DIN EN 61373, EN 45545

Special features
Shielded cable, cable protection, multiple connector options

Technical data

• Operating temperature: -50 to +200 °C
• Sensor types: Pt100, Pt1000, NTC 5 kΩ
• Measuring circuits: 1 or 2
• Protection fitting materials: Stainless steel or CuZn
• Connection cable: Halogen-free, fixed
• Ingress protection: IP68, IP69

Characteristics / technical specifications

• Qualified measuring insert specifically for railway use
• Up to two sensing elements for redundant or differential measurement
• Available sensor options: Pt100, Pt1000, NTC 5 kΩ
• Fixed connection cable with multiple termination or connector options
• Halogen-free materials and dedicated cable protection for increased safety
• Shielded cable option for improved signal integrity
• Protection fitting in stainless steel or CuZn depending on application
• Measuring circuits configurable as single or dual (1/2)
• Wide operating temperature range: -50 to +200 °C
• High ingress protection: IP68 and IP69
• Railway approvals: DIN EN 50155, DIN EN 61373, EN 45545
