Monitoring Cloud platform 701810

data managementindustrialdata collection

Overview

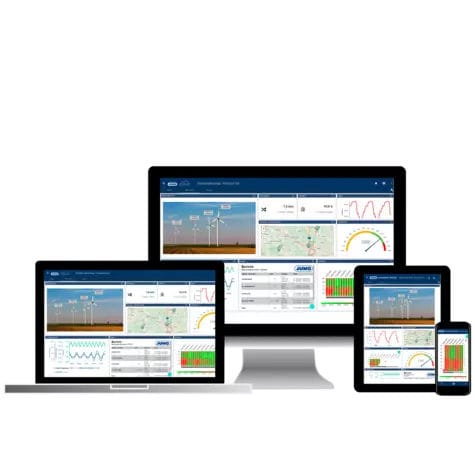

The IoT platform for process visualization, data acquisition, evaluation and archiving enables worldwide access to measurement data via common web browsers. JUMO Cloud provides secure access together with visualization, alarm and scheduling functions tailored for industrial process management.

Highlights

• Worldwide access via standard web browsers and individual dashboards
• Alarm management with configurable alarm cascades and on-call scheduling; notifications by SMS, e-mail, voice call and push
• Scalable data storage, ISO/IEC 27001 certification and end-to-end encryption (HTTPS, MQTTS/TLS)

Technical data
Registration and demo: Online registration and demo portal
Access: Individual dashboards via common browsers; tenant/client management
Installation: No installation of software, browser plugins or add-ons required
Data security: ISO/IEC 27001 certification; end-to-end encryption (HTTPS, MQTTS/TLS); redundant infrastructure
Transport protocol: MQTT
Alerts: Configurable alarm cascade with on-call schedule; SMS, e-mail, voice call and push messages
Compatible hardware: JUMO variTRON automation systems can be used as gateways to connect additional devices
Data export: No limitation of export quantity; formats supported: Excel, PDF, HTML, CSV, JSON, PNG
Process and plant visualization: Editor with integrated animation and test tool; vector-based, self-scaling process images
Reporting: Extensive and freely configurable reports (daily, weekly, monthly)
Data acquisition and archiving: Configurable acquisition cycles up to 1 s
Data storage: Expandable storage for long-term retention
Special features: Plant control, timer, configurable user and role management, integrated map service, event management, min/max monitoring, camera integration, ISO-50001 compliance, trend displays, multiple widgets
Payment models: Flat rate or pay-per-use

Characteristics / technical specifications

• IoT platform for visualization, acquisition, evaluation and archiving of process measurement data
• Access via common web browsers with individual dashboards
• No software installation or browser plugins required
• Data security: ISO/IEC 27001; HTTPS and MQTTS/TLS encryption; redundant infrastructure
• Transport protocol: MQTT
• Alarms: Configurable alarm cascade, on-call scheduling, SMS/e-mail/voice/push notifications
• Acquisition cycles: configurable, up to 1 s
• Data export formats: Excel, PDF, HTML, CSV, JSON, PNG
• Data storage: expandable for any retention period
• Integration: JUMO variTRON gateways for additional devices; camera integration
• Reporting: Configurable (daily, weekly, monthly)
• Additional features: Animation editor, map service, user/role management, event management, min-max monitoring, ISO-50001 compliance, trend widgets
• Payment: Flat rate or pay-per-use
