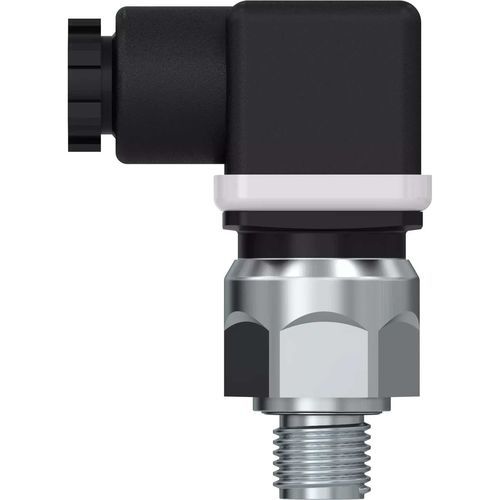

Ceramic pressure transmitter MIDAS C12 CA

2-wire4-20 mAthreaded

Overview
The JUMO MIDAS C12 CA is a pressure transmitter designed for compressor pressure measurement in industrial compressed air applications. The ceramic sensor measures relative pressure and provides a long-term stable signal.

Highlights

• Custom fit design for compressor area
• No service or maintenance required
• Simple startup through standardized interfaces

Technical data

• Measuring range: 0 to 16 bar; 0 to 10 bar; -1 to +15 bar; -1 to +9 bar
• Process connection: G 1/4 DIN 3852-11
• Output: 4 ~ 20 mA, two-wire
• Long-term stability: 0.3 %
• Material (process connection / housing): Aluminum or stainless steel
• Electrical connection: Plug connection DIN EN 175301-803, form A

Technical specifications

• Suitable medium: compressed air
• Sensor type: ceramic relative pressure sensor
• Installation: direct process mounting
• Typical applications: compressor systems, industrial air networks
