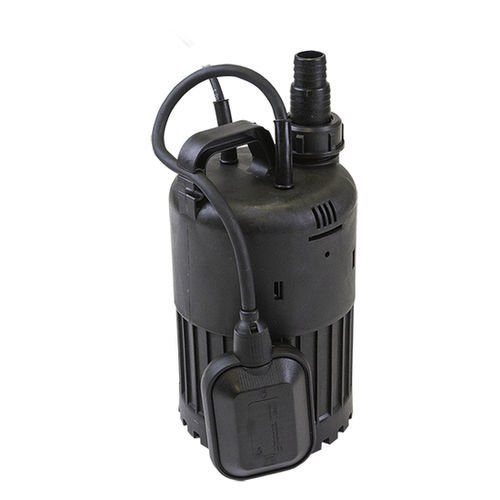

Water pump DP seriesfor clear waterelectricsubmersible
Add to favorites
Compare this product
Characteristics
- Fluid
- water, for clear water
- Operation
- electric
- Priming
- submersible
- Technology
- centrifugal
- Mobility
- stationary
- Domain
- industrial
- Applications
- work, drainage, drying
- Voltage
- 230 V
- Protection level
- IP68
- Other characteristics
- compact, transportable, integrated
- Flow
Min.: 1.3 m³/h
(45.90907 ft³/h)Max.: 7.7 m³/h
(271.92293 ft³/h)- Head
Min.: 2 m
(6'06" )Max.: 6.5 m
(21'03" )- Power
0.3 kW, 0.37 kW
(0.41 hp, 0.5 hp)- Fluid temperature
40 °C
(104 °F)- Height
256 mm
(10.08 in)- Weight
3.9 kg, 4.2 kg
(8.6 lb, 9.26 lb)
Description
Compact dimensions
Continuous operation
Easily transportable for emergency use
Integrated float switch
Low level pumping
Sealed cable inlet
The DP series submersible pumps for clear water have been designed for domestic applications such as drainage of seepage water, pumping of water from wells, water deposits and collection tanks. Equipped with Ø 25-32 rubber holder. The float level switch enables the pump to work automatically.
Minimum drying level 10 mm.
