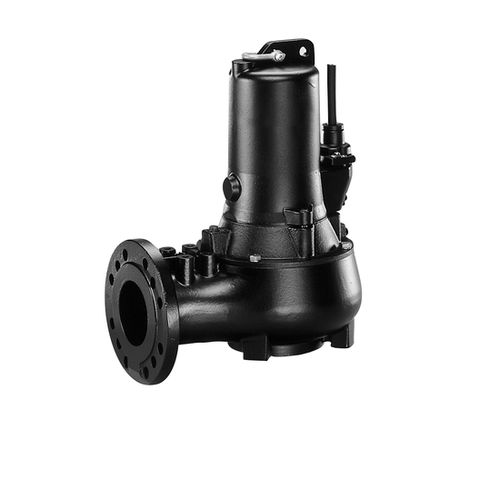

Vortex pump MultiFree series
for effluentswith electric motorsubmersible

Vortex pump - MultiFree series - JUNG PUMPEN - for effluents / with electric motor / submersible
Vortex pump - MultiFree series - JUNG PUMPEN - for effluents / with electric motor / submersible
Vortex pump - MultiFree series - JUNG PUMPEN - for effluents / with electric motor / submersible - image - 2
Add to favorites
Compare this product

Characteristics

Technology
vortex
Fluid
for effluents
Operation
with electric motor
Priming
submersible
Mobility
stationary
Domain
industrial
Applications
handling, sewage, drainage
Protection level
IP68
Other characteristics
portable
Flow

Max.: 230 m³/h
(8,122.37335 ft³/h)

Min.: 0 m³/h
(0 ft³/h)

Head

Max.: 31 m
(101'08" )

Min.: 0 m
(0'00" )

Power

Max.: 12.95 kW
(17.61 hp)

Min.: 1.4 kW
(1.9 hp)

Length

Max.: 865 mm
(34 in)

Min.: 690 mm
(27 in)

Width

Max.: 390 mm
(15.35 in)

Min.: 260 mm
(10.24 in)

Height

Max.: 870 mm
(34.25 in)

Min.: 520 mm
(20.47 in)

Weight

Max.: 139 kg
(306.44 lb)

Min.: 43 kg
(94.8 lb)

Description

MultiFree-Pumps with vortex impeller MultiFree-pumps are suitable for handling effluent or sewage in municipal and industrial pumping stations as well in surface water drainage applications. The smaller types are also used very successfully as portable units to deal with emergency situations. The sewage pumps UAK are suitable for handling water without faeces. In hazardous locations or in case the pumps are connected to the public sewerage we recommend our explosionproof sewage pumps UFK. MultiFree-Pumps are recommended for: effluent which contains fibrous matter prone to matting effluent which contains solids abrasive effluent effluent which contains trapped air or gas surface water mixed water raw effluent raw sludge rainwater
