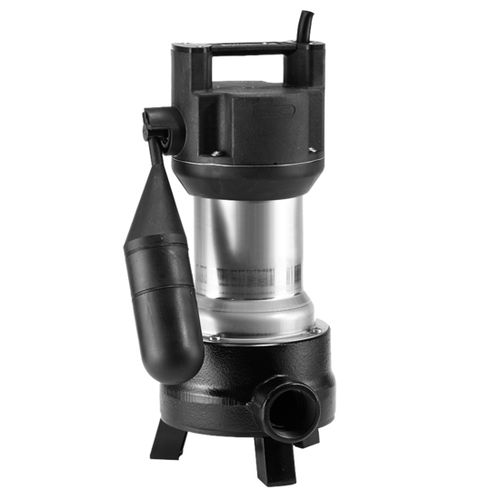

Water pump US 73 HE-US 103 HE

wastewaterfor hot wateroil

Submersible pumps for commercial applications Areas of application: Heavily contaminated and fibre-bearing waste water with coarse impurities. Also suitable for hot water up to 90 degrees (HE version) Made in Germany Safe to run dry 30 mm free passage Controllable oil chamber SiC mechanical seal independent of sense of rotation Replaceable moisture sealed cable inlet The heavy duty centrifugal submersible drainage pumps US 73 and 103 HE/HES are suitable for dealing with very contaminated water and capable of handling solids up to 30 mm particle size without stones. These pumps can be used wherever wastewater up to 194°F (90°C) is involved, such as in laundries or automatic laundrettes, or in industrial dishwashers and washing machines or for the emergency overflow of heating systems. This range of pumps is suitable for stationary use. For easy removal of the pumps from deep sumps we recommend the use of our guide rail systems which provide ease of maintenance and inspection. A controllable oil chamber and wear-resistant special mechanical seal ensure a long service life. The integrated winding thermostats protect the motor from overload. In conjunction with the drain master Hebefix 100 H, it provides a ready to install solution for conveying wastewater up to 176°F (80°C). Scope of supply Pump acc. to EN 12050 ready for connection with cable and safety plug
