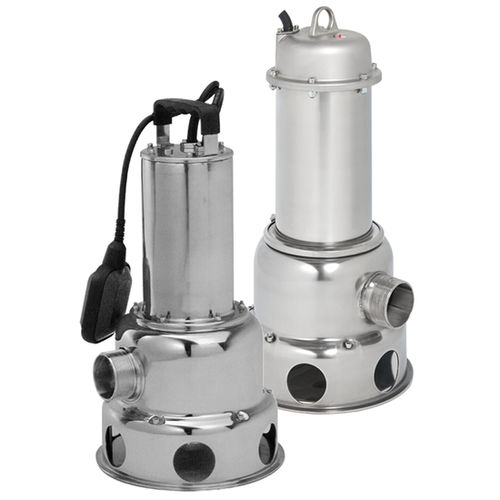

Water pump PRIOX seriesmanualsubmersiblevortex
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- manual
- Priming
- submersible
- Technology
- vortex
- Mobility
- stationary
- Domain
- industrial
- Applications
- cooling, drying
- Material
- stainless steel
- Voltage
- 400 V, 230 V
- Protection level
- IP68
- Other characteristics
- automatic, large
- Flow
Min.: 2 m³/h
(70.62933 ft³/h)Max.: 39 m³/h
(1,377.272 ft³/h)- Head
Min.: 0 m
(0'00" )Max.: 18 m
(59'00" )- Power
Min.: 0.55 kW
(0.75 hp)Max.: 3 kW
(4.08 hp)- Weight
Min.: 9.4 kg
(20.72 lb)Max.: 20.2 kg
(44.53 lb)
Description
Automatic airventing
Completely in stainless steel
Large free passage
Reliable vortex impeller
Powerful pump
Wide range
The PRIOX series pumps are made completely with stainless steel AISI 304. The operate completely immersed in the liquid to be pumped which provides for the cooling of the motor from the outside. Made with a retreated impeller on the principle of vortex operation. Automatic version (AUT) equipped with float switch.
Minimum drying level 60 mm (in manual version).
