Water pump DRENOX seriesmanualsubmersiblecentrifugal
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- manual
- Priming
- submersible
- Technology
- centrifugal
- Mobility
- stationary
- Domain
- industrial
- Applications
- drainage, drying
- Material
- stainless steel
- Voltage
- 400 V, 230 V
- Protection level
- IP68
- Other characteristics
- mechanical, double, automatic
- Flow
Max.: 16.5 m³/h
(582.692 ft³/h)Min.: 0.1 m³/h
(3.53147 ft³/h)- Head
Max.: 11 m
(36'01" )Min.: 1 m
(3'03" )- Power
Max.: 1.2 kW
(1.63 hp)Min.: 0.2 kW
(0.27 hp)- Fluid temperature
40 °C
(104 °F)- Height
231 mm, 300 mm, 338 mm
(9.09 in, 11.81 in, 13.31 in)- Weight
Max.: 8.5 kg
(18.74 lb)Min.: 5.7 kg
(12.57 lb)
Description
Completely in stainless steel
Double mechanical seal
Low level pumping (3mm vers. 80/7)
Moisture sealed cable inlet
Powerful drainage pump
Sturdy and resistant

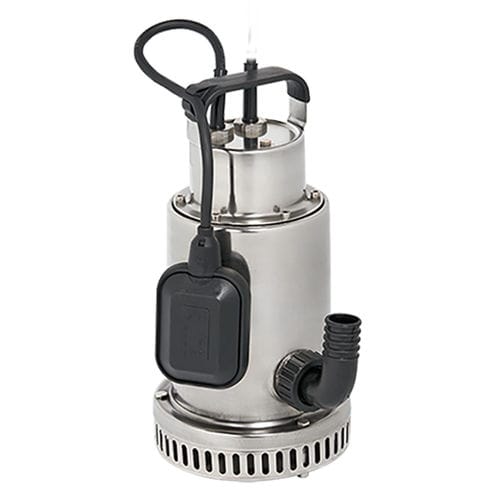

The DRENOX series pumps are made completely with stainless steel AISI 304. The motor is cooled by means of a heat exchange chamber that allows the machine to operate for long periods not completely submerged. Elbow fitting hose Ø 32 mm supplied.
Minimum drying level 3 mm for model 80/7, 35 mm for the other models (in manual version).
Automatic version (aut) equipped with float switch.
