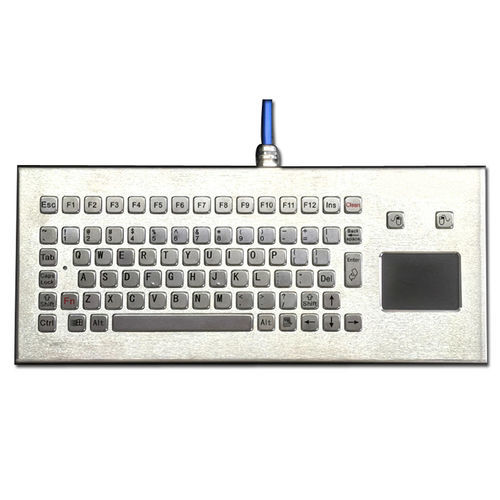

Desktop keyboard KH-K80-368TP

carbon contact80-keywith touchpad

Overview
The KH-K80-368TP is a compact industrial desktop keyboard engineered for space-constrained and hygiene-critical environments. It omits the numeric keypad to reduce footprint while providing an integrated high-precision touchpad and a dedicated CLEAN function key to facilitate sanitation procedures. Housed in a stainless steel enclosure with an IP65-rated front panel.

The keyboard is suitable for medical diagnostic systems, laboratory instruments, cleanroom control stations, pharmaceutical production lines, food & beverage processing, industrial control rooms and public kiosks.

Features

• Compact 80-key layout (no numeric keypad) to save workspace
• Dedicated CLEAN function key for activating cleaning modes or sanitation routines
• Stainless steel top panel and metal housing for easy surface cleaning
• IP65-rated front panel: waterproof, dustproof and vandal-resistant
• Integrated high-precision touchpad as pointing device
• Multiple interface options: USB, PS/2 or others available
• Customized key layouts and legends available on request

Technical specifications

• Model number: KH-K80-368TP
• Dimensions: 368 x 155 mm
• Form factor: 80-key compact desktop keyboard (no numeric keypad)
• Housing material: Stainless steel top panel, metal chassis
• Ingress protection: IP65 front panel (waterproof/dustproof), NEMA4
• Pointing device: Integrated touchpad
• Key travel: 2.00 mm
• Power: 5.0V DC ±5%
• Interfaces: USB, PS/2 or other options
• OS support: Windows, Linux/Unix, Mac OS X, iOS, Android
• Operating temperature: -30°C to +70°C; Storage: -40°C to +80°C
• Humidity (operating): 20–95% RH
• Atmospheric pressure: 60–106 Kpa
• Compliance: RoHS, CE, FCC
• MTBF: >50,000 hours; MTTR:
• Warranty: 1-year limited
